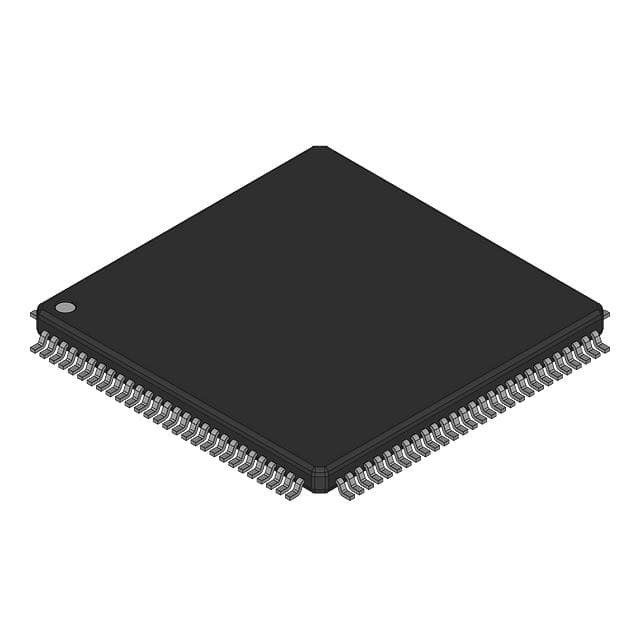

S9S12HZ128J3CAL
Same model may have multiple batches, images only for reference.

S9S12HZ128J3CAL

Part No S9S12HZ128J3CAL
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 112LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features HCS12 series Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 112-LQFP (20x20)
Manufacturer Freescale Semiconductor - NXP
Series HCS12
Package Bulk
Core Processor HCS12
Core Size 16-Bit
Speed 25MHz
Connectivity CANbus, EBI/EMI, I2C, SCI, SPI
Peripherals LCD, Motor control PWM, POR, PWM, WDT
Number of I/O 91
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
Supply Voltage 2.35V ~ 2.75V
Data Converters A/D 16x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 112-LQFP
Case / Package 112-LQFP (20x20)
Family Name S9S12
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893424-S9S12HZ128J3CAL
Ultra Librarian 3D Model Ultra Librarian S9S12HZ128J3CAL CAD Model

Description

The Freescale Semiconductor - NXP S9S12HZ128J3CAL is a HCS12 series Microcontroller IC that is designed for use in various electronic applications.

  • Operating Temperature: -40°C to 85°C (TA)
  • Package: 112-LQFP bulk
  • Mounting Type: Surface Mount
  • Core Processor: HCS12
  • Speed: 25MHz
  • Program Memory Size: 128KB (128K x 8) FLASH
  • EEPROM Size: 2K x 8
  • I/O: 91
  • Connectivity: CANbus, EBI/EMI, I2C, SCI, SPI
  • ECCN: EAR99
  • REACH: Unaffected
  • Quantity per Package: 1
