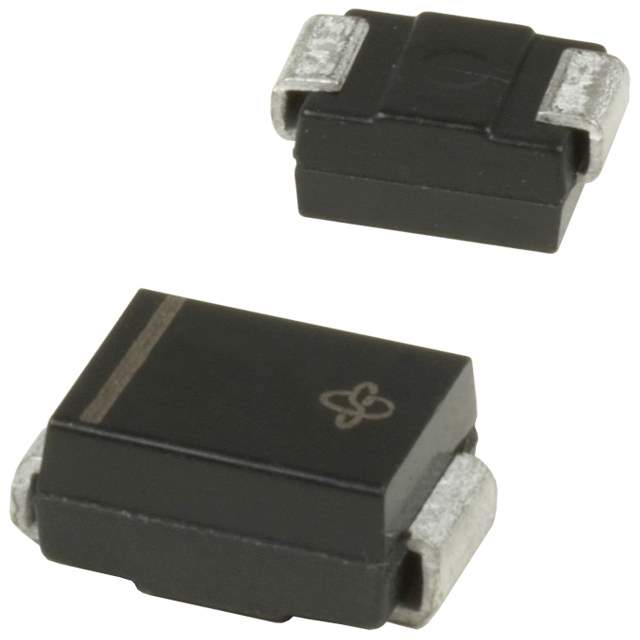

SMBJ12CA/54 Real Image
Same model may have multiple batches, images only for reference.

SMBJ12CA/54

Part No SMBJ12CA/54
Manufacturer Vishay
Catalog TVS - Diodes
Datasheet
SMBJ12CA/54 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series TransZorb®
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 30.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Base Product Number SMBJ12
Other Names SMBJ12CAGICT,SMBJ12CA/1GITR,SMBJ12CAGITR,SMBJ12CA/54GICT,SMBJ12CA/1GITR,SMBJ12CAGITR,SMBJ12CA/1GICT,SMBJ12CA/1GICT,SMBJ12CA/1,SMBJ12CAGICT,SMBJ12CA/54GITR
Standard Package 750
RoHS Status RoHS non-compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1295896-SMBJ12CA/54
Ultra Librarian 3D Model Ultra Librarian SMBJ12CA/54 CAD Model

Description

The SMBJ12CA/54 is a Zener type TVS diode that offers protection against electrostatic discharge (ESD), electrical fast transient (EFT), and lightning surge events in general-purpose applications manufactured by Vishay General Semiconductor - Diodes Division.

  • Mounting: Surface-mounted
  • Package: DO-214AA (SMB)
  • Channel: Bidirectional
  • Voltage (Reverse Standoff): 12V
  • Voltage (Breakdown): 13.3V
  • Voltage Clamping (Max): 19.9V @ peak pulse current
  • Peak Pulse Power: 600W
  • Peak Pulse Current: 30.2A
  • Power Line Protection: No
  • Capacitance: No capacitance @ frequency
  • Operating Temperature: -55°C to 150°C (TJ)
  • Standard Package: 750 units
