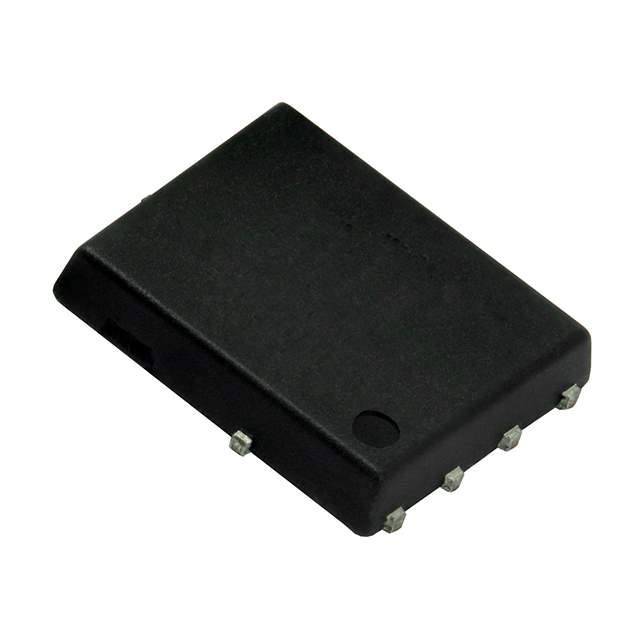

SIRA20BDP-T1-GE3

Name: SIRA20BDP-T1-GE3
Brand: Vishay
SKU: 982860
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SIRA20BDP-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 82A/335A PPAK / N-Channel 25 V 82A (Ta), 335A (Tc) 6.3W (Ta), 104W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SIRA20BDP-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET® Gen IV
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	82A (Ta), 335A (Tc)
Rds On (Max) @ Id, Vgs	0.58mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	186 nC @ 10 V
Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	9950 pF @ 15 V
Power Dissipation (Max)	6.3W (Ta), 104W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Base Product Number	SIRA20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	742-SIRA20BDP-T1-GE3TR,742-SIRA20BDP-T1-GE3DKR,742-SIRA20BDP-T1-GE3CT
Standard Package	3,000
Win Source Part Number	982860-SIRA20BDP-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SIRA20BDP-T1-GE3 CAD Model

Alternative Products

Description

The SIRA20BDP-T1-GE3 is an N-channel MOSFET electronic component from Vishay's TrenchFET Gen IV series.

Drain to Source Voltage: 25V
Continuous Drain Current: 82A (Ta) and 335A (Tc)
Rds on (Max) @ Id, Vgs: 0.58mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 186 nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 9950 pF @ 15V
Package: PowerPAK SO-8
Operating Temperature: -55°C to 150°C (TJ)
