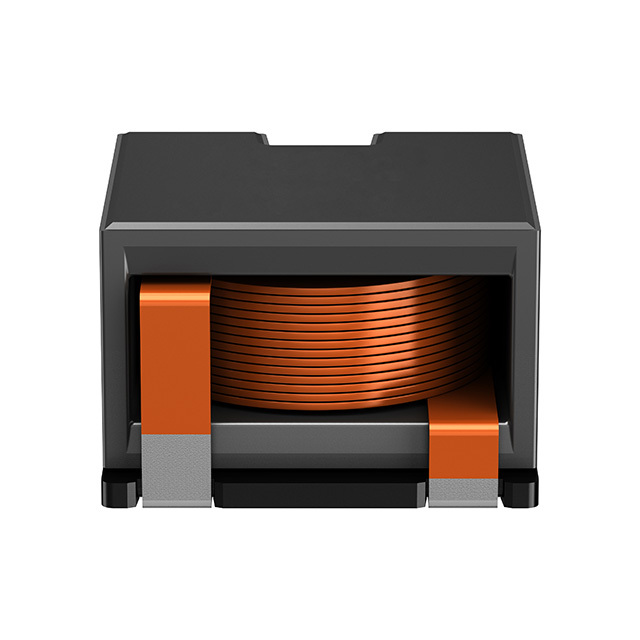

B82559B3152A016 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82559B3152A016

Part No B82559B3152A016
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 1.5 µH Shielded Drum Core, Wirewound Inductor 30 A 1.4mOhm Nonstandard, 3 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series ERU16 - Flat Wire Inductor
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±10%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 40.5A
Shielding Shielded
DC Resistance (DCR) 1.4mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard, 3 Lead
Size / Dimension 0.681" L x 0.650" W (17.30mm x 16.50mm)
Height - Seated (Max) 0.333" (8.45mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1482487-B82559B3152A016
Ultra Librarian 3D Model Ultra Librarian B82559B3152A016 CAD Model
