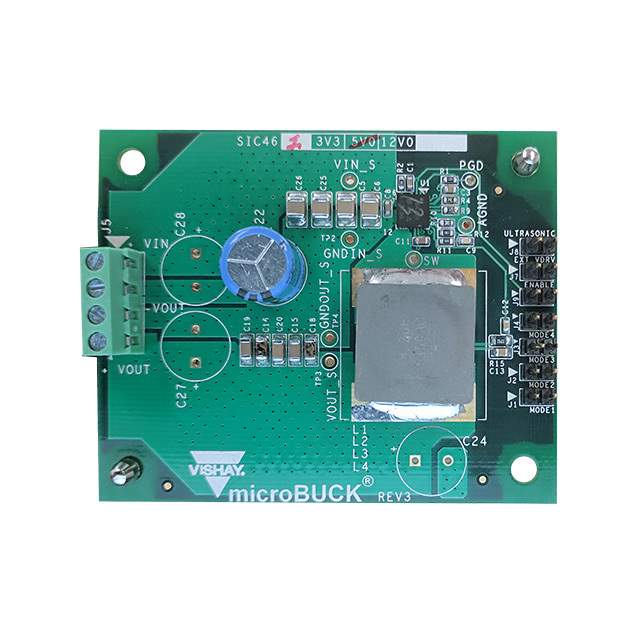

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Vishay Siliconix
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Current - Output 10A
Voltage - Input 4.5V ~ 60V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SIC461
Base Product Number SIC461
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1284145-SIC461EVB
Ultra Librarian 3D Model Ultra Librarian SIC461EVB CAD Model

Description

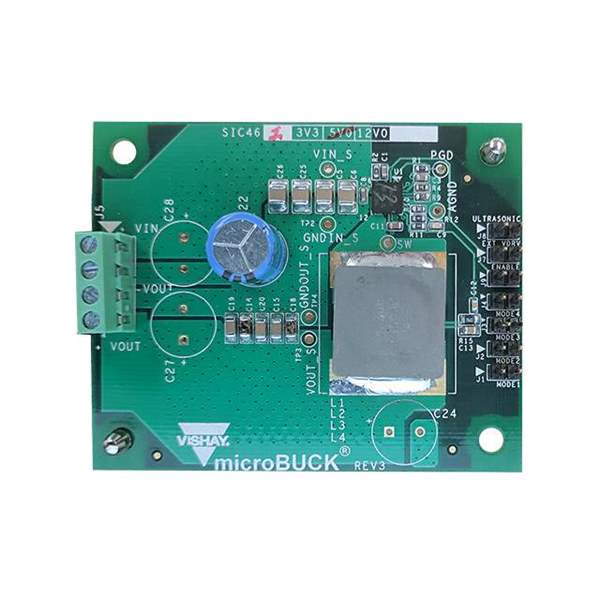

The SIC461EVB evaluation board from Vishay Siliconix is a fully populated board that is designed for use with the SIC461 buck regulator.

  • Output: non-isolated
  • Current Output: 10A
  • Voltage Input Range: 4.5V to 60V
  • Temperature Range: not specified
  • REACH: unaffected
  • Package: box
