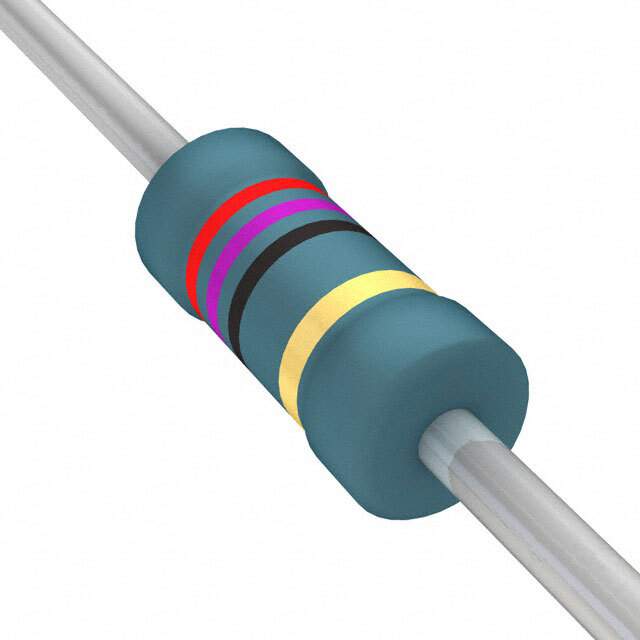

SFR16S0002709JA500 Real Image
Same model may have multiple batches, images only for reference.

SFR16S0002709JA500

Part No SFR16S0002709JA500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 27 OHM 1/2W 5% AXIAL / 27 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Datasheet
SFR16S0002709JA500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series SFR16S
Package Cut Tape (CT),Tape & Box (TB)
Resistance 27 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Dimension 0.075" Dia x 0.138" L (1.90mm x 3.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names SFR16S0002709JA500-ND,BC4320TB,BC4320CT
Standard Package 5,000
Win Source Part Number 959424-SFR16S0002709JA500
Ultra Librarian 3D Model Ultra Librarian SFR16S0002709JA500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 959424-SFR16S0002709JA500 is a low-popularity electronic component that comes in a cut tape (CT), tape & box (TB) package. It is a metal film resistor with a resistance of 27 Ohms and a power (watts) of 0.5W, 1/2W. It has a ±5% tolerance and a ±100ppm/°C temperature coefficient. The package/case is axial, and the temperature range for operating is -55°C to 155°C. It is suitable for use in through-hole resistors.
