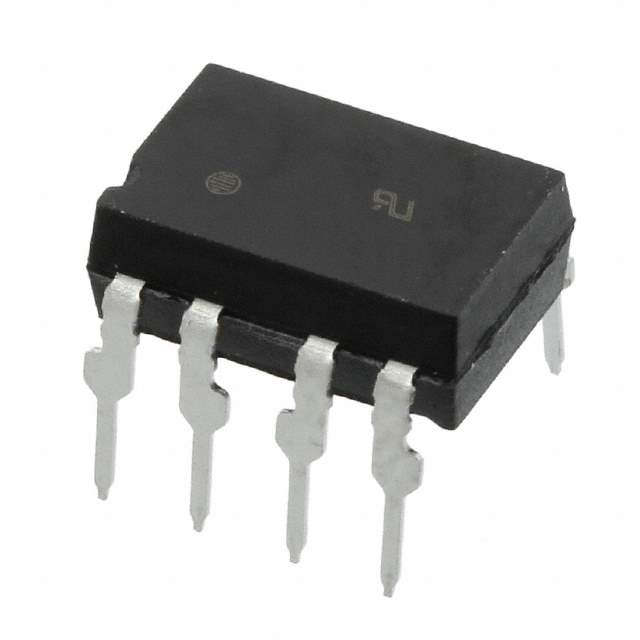

SFH6700 Real Image
Same model may have multiple batches, images only for reference.

SFH6700

Part No SFH6700
Manufacturer Vishay
Catalog Optoisolators - Logic Output
Description OPTOISO 5.3KV TRI-STATE 8SMD
Datasheet
SFH6700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5300Vrms
Common Mode Transient Immunity (Min) 1kV/μs
Input Type DC
Output Type Tri-State
Channel Output Current 25mA
Data Rate 5MBd
Propagation Delay tpLH / tpHL (Max) 300ns, 300ns
Rise and Fall Time 40ns, 10ns
Forward Voltage 1.6V
Continuous forward current- Max 10mA
Supply Voltage - Operating 4.5 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 028277-SFH6700
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SFH6700 CAD Model

Description

The Vishay SFH6700 is an SMD (SMT) electronic component that is designed for isolator applications.

  • Output Type: Tri-State
  • Data Rate: 5MBd
  • Forward Voltage: 1.6V
  • Input Type: DC
  • Number of Channels: 1
  • Inputs-Side 1: 1
  • Inputs-Side 2: 0
  • Common Mode Transient Immunity: 1kV/μs
  • Propagation Delay (tpLH): 300ns (tpLH)
  • Propagation Delay (tpHL): 300ns (tpHL)
  • Isolation Voltage: 5300Vrms
  • Supply Voltage Range: 4.5V to 15V
  • Channel Output Current: 25mA
  • Continuous Forward Current: 10mA
  • Case/Package: 8-SMD
  • Temperature Range: -40°C to 85°C
