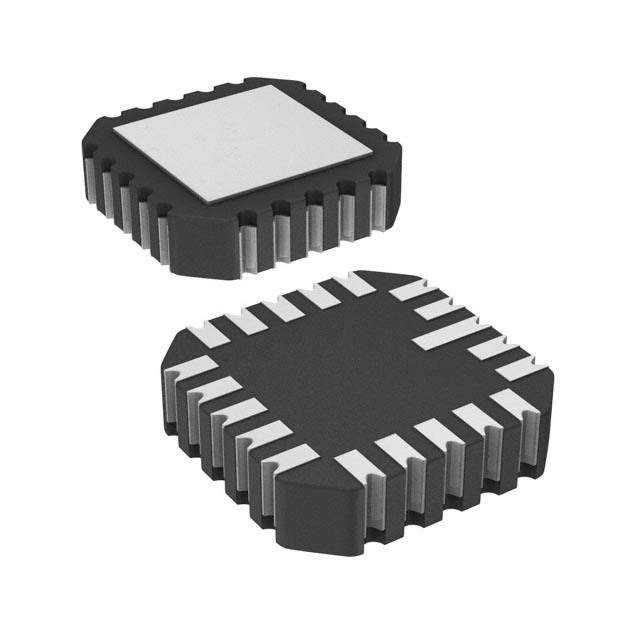

HCPL-6431 Real Image
Same model may have multiple batches, images only for reference.

HCPL-6431

Part No HCPL-6431
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV PUSH PULL 20LCCC / Logic Output Optoisolator 40Mbps Push-Pull, Totem Pole 1500VDC 2 Channel 500V/µs CMTI 20-LCCC (8.89x8.89)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Broadcom Limited
Package Bulk
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Min) 500V/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 25 mA
Data Rate 40Mbps
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise / Fall Time (Typ) 15ns, 10ns
Voltage - Forward (Vf) (Typ) 1.35V
Current - DC Forward (If) (Max) 10mA
Voltage - Supply 4.75V ~ 5.25V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-CLCC
Supplier Device Package 20-LCCC (8.89x8.89)
Base Product Number HCPL-6431
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2C
HTSUS 8541.49.8000
Standard Package 1
Win Source Part Number 1204146-HCPL-6431
Ultra Librarian 3D Model Ultra Librarian HCPL-6431 CAD Model

Description

The HCPL-6431 is an optoisolator with a push-pull and totem pole output type.

  • Output Type: Push-Pull, Totem Pole
  • Data Rate: 40Mbps
  • Input Type: DC
  • DC Forward Current (Max): 10mA
  • Voltage Forward: 1.35V
  • Rise Time: 15ns
  • Fall Time: 10ns
  • Output/Channel Current: 25mA
  • Number of Channels: 2
  • Isolation Voltage: 1500VDC
  • Common Mode Transient Immunity (Min): 500V/µs
  • Propagation Delay tpLH/tpHL (Max): 60ns
  • Voltage Supply: 4.75V to 5.25V
  • Package/Case: 20-CLCC
  • Supplier Device Package: 20-LCCC (8.89x8.89)
  • Operating Temperature: -55°C to 125°C
