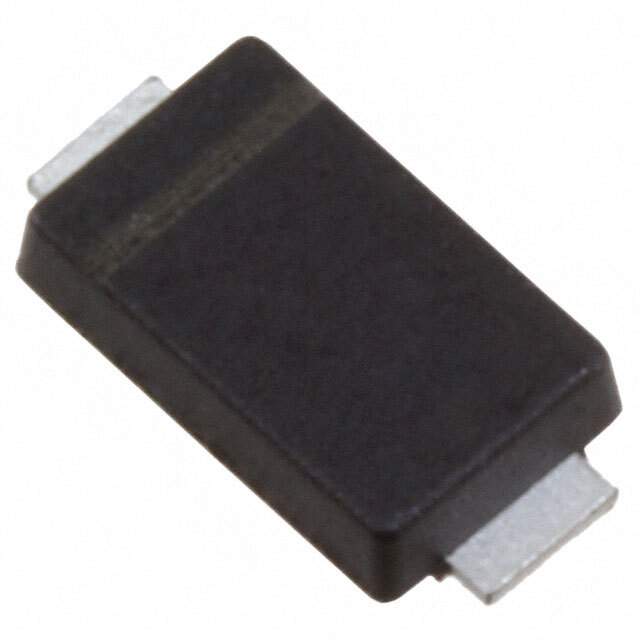

SE30PAG-M3/I Real Image
Same model may have multiple batches, images only for reference.

SE30PAG-M3/I

Part No SE30PAG-M3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SE30PAG-M3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series eSMP®
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.16 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.3 µs
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Capacitance @ Vr, F 13pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SE30
Other Names SE30PAG-M3/IGICT,SE30PAG-M3/IGIDKR,SE30PAG-M3/IGITR,SE30PAG-M3/I
Standard Package 14,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281241-SE30PAG-M3/I
Ultra Librarian 3D Model Ultra Librarian SE30PAG-M3/I CAD Model

Description

The Vishay eSMP® 1281241-SE30PAG-M3/I is a standard diode rectifier with a voltage - DC reverse (Vr) of 400 V and a current - average rectified (Io) of 3A.

  • Voltage - Forward (Vf) (Max) @ If: 1.16 V @ 3 A
  • Reverse Recovery Time (trr): 1.3 µs
  • Current - Reverse Leakage @ Vr: 5 µA @ 400 V
  • Capacitance @ Vr, F: 13pF @ 4V, 1MHz
  • Mounting: Mounted in an SMD (SMT) case
  • Package / Case: DO-221BC, SMA Flat Leads Exposed Pad
  • Operating Temperature Range: -55°C to 175°C
  • ECCN: EAR99
