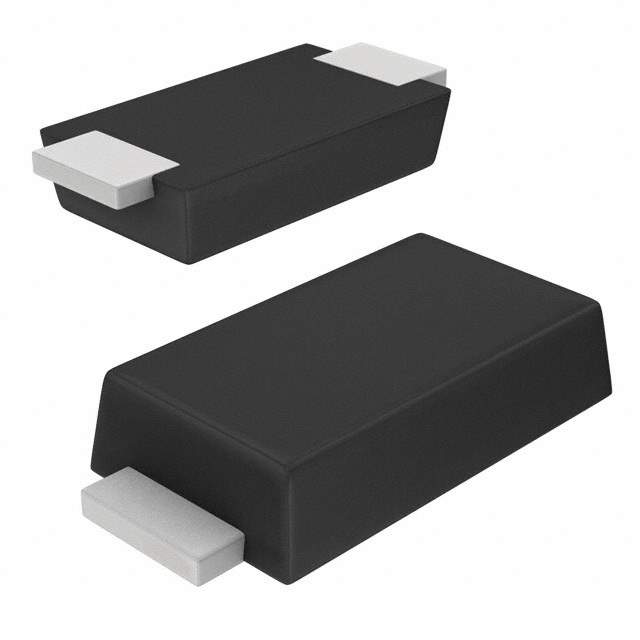

SE20AFG-M3/6B Real Image
Same model may have multiple batches, images only for reference.

SE20AFG-M3/6B

Part No SE20AFG-M3/6B
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SE20AFG-M3/6B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1.3A (DC)
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.2 µs
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Capacitance @ Vr, F 12pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC (SlimSMA)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SE20
Standard Package 14,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281689-SE20AFG-M3/6B
Ultra Librarian 3D Model Ultra Librarian SE20AFG-M3/6B CAD Model

Description

The Vishay SE20AFG-M3/6B is a standard recovery diode designed for use in rectifier circuits.

  • Maximum Reverse Voltage: 400V
  • Current Average Rectified (Io): 1.3A DC
  • Voltage Forward (Vf): 1.1V @ 2A
  • Reverse Recovery Time (trr): 1.2 μs
  • Capacitance @ Vr, F: 12pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 175°C
  • RoHS Compliant: yes
  • Package: DO-221AC
  • Ideal for: use in a wide range of rectifier circuits
