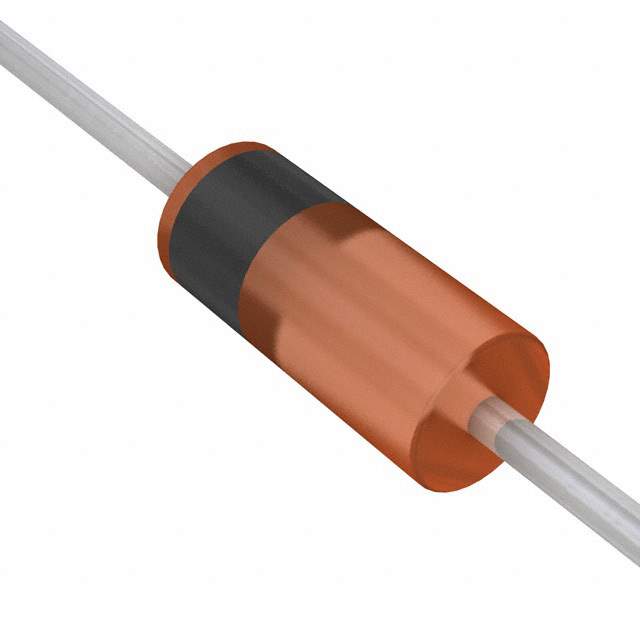

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 35 Weeks
Features Diode Schottky 20 V 200mA Through Hole DO-35 (DO-204AH)
Manufacturer Vishay
Series Automotive, AEC-Q101
Package Tape & Box (TB)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package DO-204AH, DO-35, Axial
Case / Package DO-35 (DO-204AH)
Family Name SD103
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Quantity per package 50000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893912-SD103C-TAP
Ultra Librarian 3D Model Ultra Librarian SD103C-TAP CAD Model

Description

The SD103C-TAP is a Schottky diode from Vishay.

  • Supply and Demand Status: balanced
  • Application: high-speed switching applications
  • Forward Voltage Drop: 0.38 V @ a forward current of 200 mA
  • Maximum Reverse Voltage: 20 V
  • Maximum Forward Current: 200 mA
  • Package: DO-35 package
