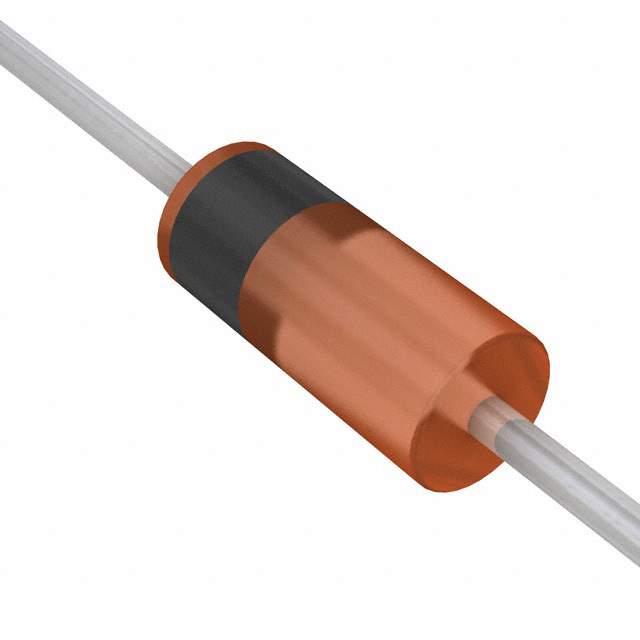

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Box (TB)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Max) @ If 950 mV @ 15 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 nA @ 40 V
Capacitance @ Vr, F 2.1pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Operating Temperature - Junction 125°C (Max)
Base Product Number SD101
Standard Package 50,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1281453-SD101B-TAP
Ultra Librarian 3D Model Ultra Librarian SD101B-TAP CAD Model

Description

The SD101B-TAP is a Schottky diode from the Automotive, AEC-Q101 series.

  • Series: Automotive, AEC-Q101
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (max): 50 V
  • Average Rectified Current (Io): 30mA
  • Voltage - Forward (Vf) (max) @ If: 950 mV @ 15 mA
  • Current - Reverse Leakage @ Vr: 200 nA @ 40 V
  • Capacitance @ Vr, F: 2.1pF @ 0V, 1MHz
  • Operating Temperature Range: 125°C (Max)
  • Package: DO-204AH, DO-35, Axial
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0070
