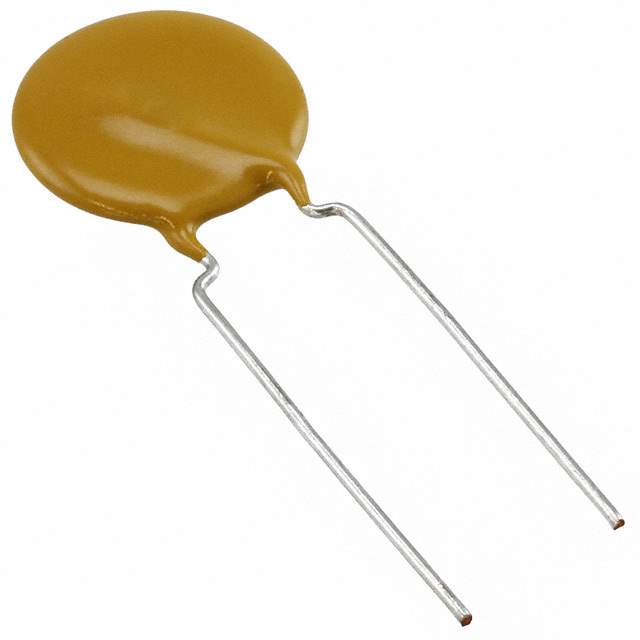

Same model may have multiple batches, images only for reference.

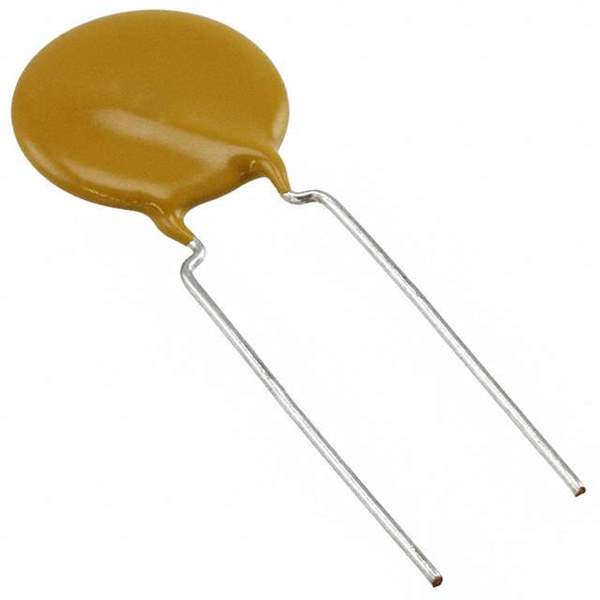

S223M75Z5UN83J0R Real Image
Same model may have multiple batches, images only for reference.

S223M75Z5UN83J0R

Part No S223M75Z5UN83J0R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 1KV Z5U RADIAL
Datasheet
S223M75Z5UN83J0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 0.022μF
Tolerance ±20%
Voltage Rating 1000V (1kV)
Temperature Coefficient Z5U
Temperature Range - Operating -30°C to 85°C
Applications General Purpose
Mounting Through Hole
Dimension 0.748" Dia (19.00mm)
Height - Seated (Max) 0.937" (23.80mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
Win Source Part Number 046551-S223M75Z5UN83J0R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S223M75Z5UN83J0R CAD Model

Description

The Vishay S223M75Z5UN83J0R is a capacitor designed for general-purpose use.

  • Capacitance: 0.022μF
  • Voltage Rating: 1000V (1kV)
  • Mounting: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Popularity: Medium
  • Supply and Demand Status: balanced
  • Lifespan: 5000 hours @ 105°C
