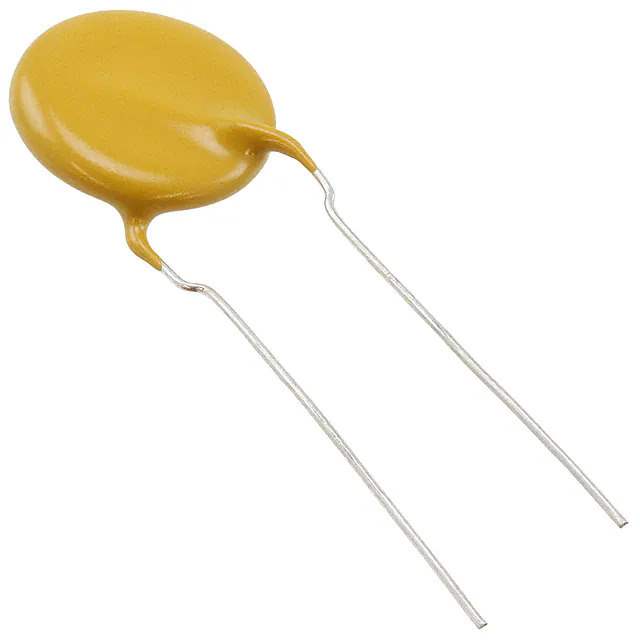

Same model may have multiple batches, images only for reference.

S103M69Z5UP63K7R

Name: S103M69Z5UP63K7R
Brand: Vishay
SKU: 850195
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S103M69Z5UP63K7R
Manufacturer	Vishay
Catalog	Ceramic Capacitors
Description	CAP CER 10000PF 2KV Z5U RADIAL
Datasheet	S103M69Z5UP63K7R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Vishay
Series	S
Package	Bulk
Product Status	Active
Capacitance	10000 pF
Tolerance	±20%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	Z5U
Temperature Range - Operating	-30°C ~ 125°C
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.689" Dia (17.50mm)
Height - Seated (Max)	0.878" (22.30mm)
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
Standard Package	500 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	850195-S103M69Z5UP63K7R
Ultra Librarian 3D Model	Ultra Librarian S103M69Z5UP63K7R CAD Model

Alternative Products

Description

The S series ceramic capacitor, part number 850195-S103M69Z5UP63K7R, is a reliable component designed for general-purpose applications.

Capacitance: 10000 pF
Voltage - Rated: 2000V (2kV)
Tolerance: ±20%
Temperature Coefficient: Z5U
Operating Temperature: -30°C ~ 125°C
Package / Case: Radial, Disc
Mounting Type: Through Hole
Lead Style: Formed Leads - Kinked
Size: 0.689" Dia (17.50mm)
Height: 0.878" (22.30mm)
Series: S
Manufacturer: Vishay
