Same model may have multiple batches, images only for reference.

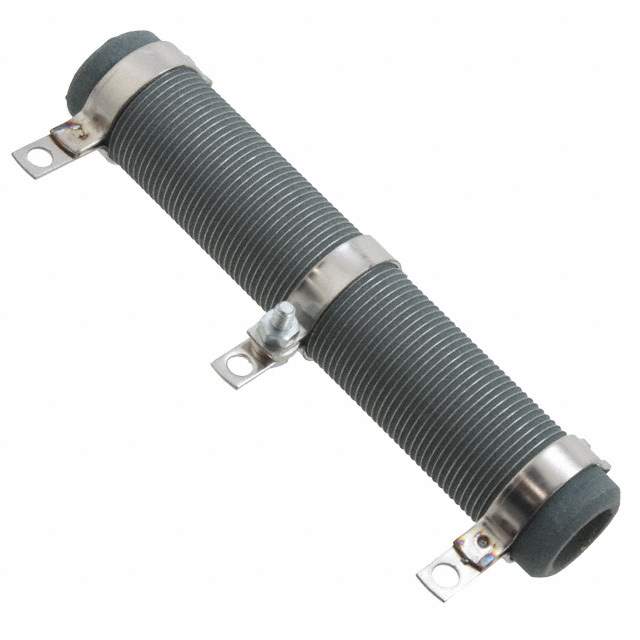

RSSD20117A4R70KB15 Real Image
Same model may have multiple batches, images only for reference.

RSSD20117A4R70KB15

Part No RSSD20117A4R70KB15
Manufacturer Vishay
Catalog Potentiometers, Variable Resistors
Description ADJ PWR RES 4.7 OHM 100W CHAS MT / 4.7 Ohms 100 W Slide Adjustable Power Resistor Chassis Mount 0.866" OD, 0.496" ID (22.00mm x 12.60mm) 4.606" (117.00mm) Length
Datasheet
RSSD20117A4R70KB15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Adjustable Power Resistor
Mfr Vishay Sfernice
Series RSSD
Package Bulk
Resistance 4.7 Ohms
Power (Watts) 100 W
Tolerance ±10%
Adjustment Type Slide
Diameter 0.866" OD, 0.496" ID (22.00mm x 12.60mm)
Length 4.606" (117.00mm)
Mounting Type Chassis Mount
Termination Solder Lug
Package / Case Radial, 3 Lead, Tubular
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.29.0000
Other Names RSSD-4.7C
Standard Package 20
Win Source Part Number 1096190-RSSD20117A4R70KB15
Ultra Librarian 3D Model Ultra Librarian RSSD20117A4R70KB15 CAD Model

Description

The Vishay Sfernice RSSD-4.7C is a 100W slide adjustable power resistor with a resistance of 4.7 ohms.

  • Power: 100W
  • Resistance: 4.7 ohms
  • Diameter: 0.866 inches
  • Length: 4.606 inches
  • Package: Radial, 3 lead, Tubular
  • Tolerance: ±10%
  • Mounting: Chassis mount
  • Termination: Solder lug
  • Alternative: HSC3004R7J, D12K5R0E, D100K5R0E, and D25K5R0E
  • ECCN: EAR99
