Same model may have multiple batches, images only for reference.

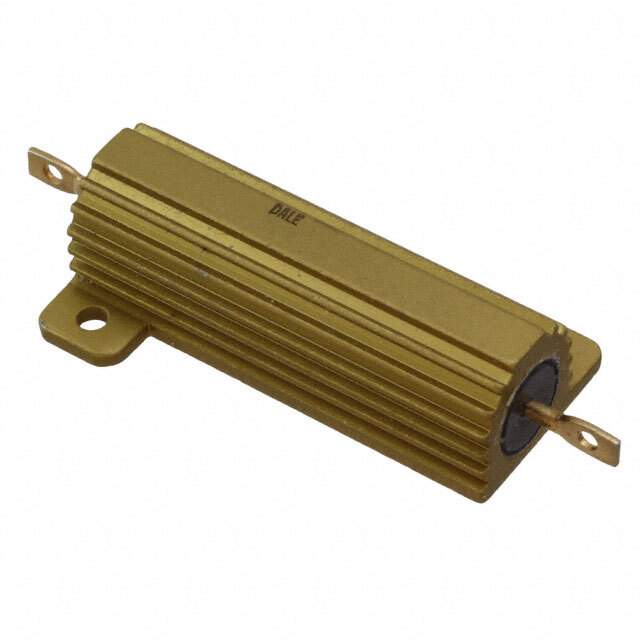

RH0501R000FE02 Real Image
Same model may have multiple batches, images only for reference.

RH0501R000FE02

Part No RH0501R000FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 1 OHM 1% 50W / 1 Ohms ±1% 50W Wirewound Chassis Mount Resistor
Datasheet
RH0501R000FE02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Dale
Series RH
Package Bulk
Resistance 1 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.968" L x 1.140" W (49.99mm x 28.96mm)
Height - Seated (Max) 0.625" (15.87mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names RHRD-1.0
Standard Package 5
Win Source Part Number 1209406-RH0501R000FE02
Ultra Librarian 3D Model Ultra Librarian RH0501R000FE02 CAD Model

Description

The RH0501R000FE02 is a chassis mount resistor from Vishay Dale.

  • Resistance: 1 Ohms
  • Power Rating: 50W
  • Package: Bulk
  • Standard Package: 5
  • Moisture Resistant: Yes
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C.29.0000
  • Material: Wirewound
  • Coating Housing Type: Aluminum
  • Dimension: 1.968" L x 1.140" W (49.99mm x 28.96mm)
  • Mounting Type: Flanges
  • Alternative Part Number: RHRD-1.0
