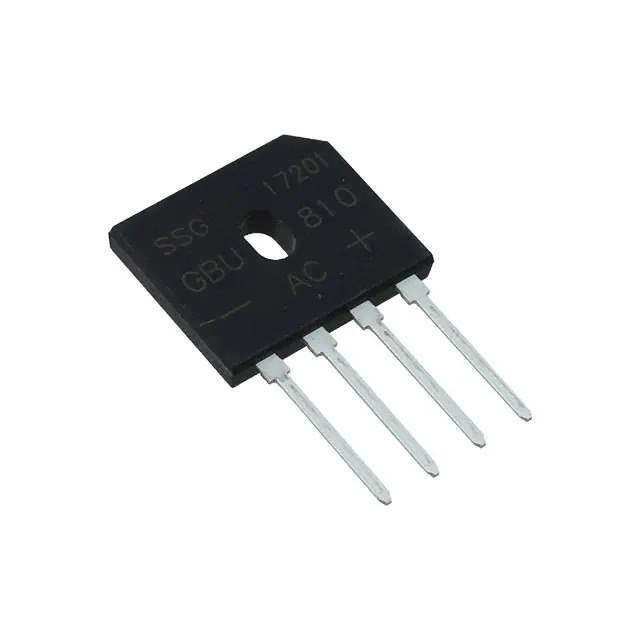

GBU1510

Part No GBU1510
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 15A GBU
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU1510
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594328-GBU1510
Ultra Librarian 3D Model Ultra Librarian GBU1510 CAD Model

Description

GBU1510 from SMC Diode Solutions is a bridge rectifier used to convert AC input into DC output in power conversion stages across commercial, industrial, and general-purpose electronic equipment. Components in this category are commonly selected for front-end rectification in power supplies, battery chargers, motor-related circuits, adapters, and control boards where dependable AC-to-DC conversion is required. For engineers and buyers, GBU1510 fits the practical need for a standard bridge rectifier option from a recognized semiconductor supplier, making it relevant for maintenance, replacement, and ongoing production support. Because the lifecycle status provided here is Unknown, design teams should confirm current production status directly with SMC Diode Solutions or an authorized channel before committing to new designs or long-term procurement. RoHS compliance information is not available from the provided input, so environmental compliance should also be verified through the latest manufacturer datasheet, declaration, or distributor compliance documentation.
