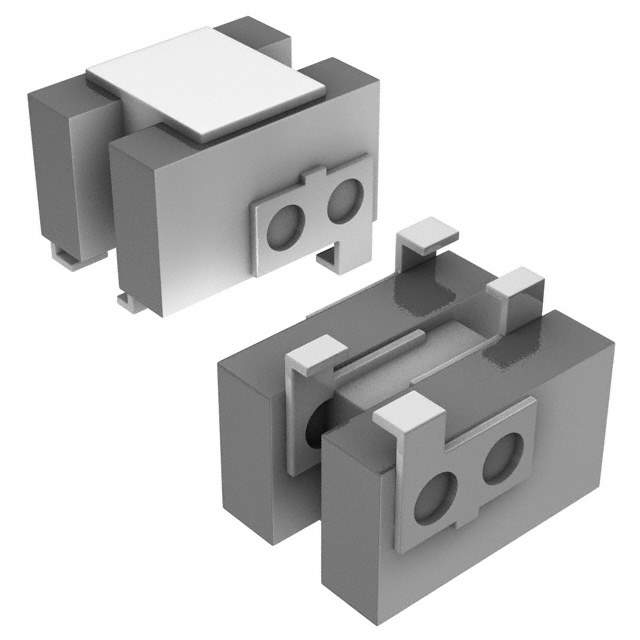

PTCTT95R500GTE Real Image
Same model may have multiple batches, images only for reference.

PTCTT95R500GTE

Part No PTCTT95R500GTE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 240V 90MA 4SMD / Ceramic PTC Resettable Fuse 240V 90 mA Ih Surface Mount 4-SMD
Datasheet
PTCTT95R500GTE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Package Tape & Reel (TR)
Type Ceramic
Voltage - Max 240V
Current - Max 2.5 A
Current - Hold (Ih) (Max) 90 mA
Current - Trip (It) 190 mA
Time to Trip 1.2 s
Resistance - 25°C (Typ) 50 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD
Dimension 0.354" L x 0.283" W (9.00mm x 7.20mm)
Thickness (Max) 0.272" (6.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 238167361509,2381 673 61509,2381 673 61509-ND
Standard Package 1,000
Win Source Part Number 1015226-PTCTT95R500GTE
Ultra Librarian 3D Model Ultra Librarian PTCTT95R500GTE CAD Model

Description

The 1015226-PTCTT95R500GTE is a PTC resettable fuse designed by Vishay Beyschlag/Draloric/BC Components.

  • Product: 1015226-PTCTT95R500GTE
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Application: Various
  • Package: Tape and Reel
  • Standard Package: 1,000
  • RoHS: Compliant
  • REACH: Affected
  • Type: Ceramic PTC Resettable Fuse
  • Voltage (Max): 240V
  • Current (Max): 2.5A
  • Current Hold (Ih): 90mA
  • Current Trip (It): 190mA
  • Time to Trip: 1.2s
  • Package/Case: 4-SMD
  • Resistance: 50 ohms @ 25°C (typical)
  • Temperature Range: -40°C to 85°C
