Same model may have multiple batches, images only for reference.

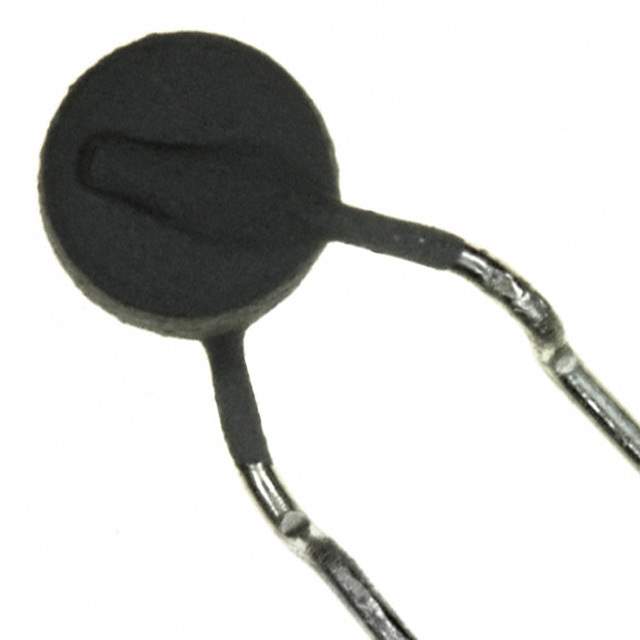

PTCCL10H010SBE Real Image
Same model may have multiple batches, images only for reference.

PTCCL10H010SBE

Part No PTCCL10H010SBE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 600V 10MA RADIAL / Ceramic PTC Resettable Fuse 600V 10 mA Ih Through Hole Radial, Disc
Datasheet
PTCCL10H010SBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series PTCCL - 600V
Package Bulk
Type Ceramic
Voltage - Max 600V
Current - Max 2 A
Current - Hold (Ih) (Max) 10 mA
Current - Trip (It) 50 mA
Resistance - 25°C (Typ) 400 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.394" Dia x 0.256" T (10.00mm x 6.50mm)
Height - Seated (Max) 0.532" (13.50mm)
Lead Spacing 0.320" (8.12mm)
Approval Agency UL
Base Product Number PTCCL
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Other Names BC3407
Standard Package 500
Win Source Part Number 1157014-PTCCL10H010SBE
Ultra Librarian 3D Model Ultra Librarian PTCCL10H010SBE CAD Model

Description

The PTCCL10H010SBE is a PTC resettable fuse manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Voltage Rating: 600V
  • Current Rating: 2A
  • Current Hold: 10mA
  • Current Trip: 50mA
  • Resistance: 400 ohms @ 25°C
  • Type: Ceramic
  • Mounting: Through-hole
  • Package: Radial, disc
  • ECCN: EAR99
  • REACH: Affected
