Same model may have multiple batches, images only for reference.

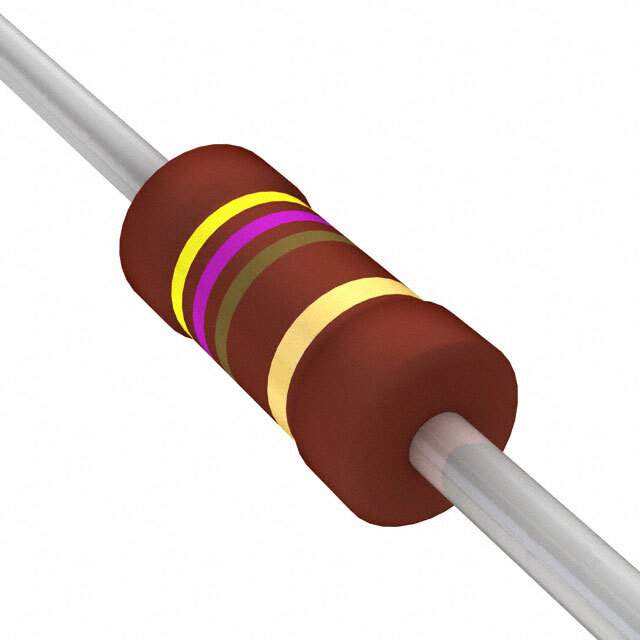

PR03000204700JAC00 Real Image
Same model may have multiple batches, images only for reference.

PR03000204700JAC00

Part No PR03000204700JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 470 OHM 3W 5% AXIAL / 470 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Fusible, Safety Metal Film
Datasheet
PR03000204700JAC00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR03
Package Cut Tape (CT),Tape & Box (TB)
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Film
Features Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names PPC470W-3JTB-NDR,5093NW470R0J,5093NW470R0JA8AFX,PPC470W-3JCT,PPC470W-3JTB,PPC470W-3JCT-NDR
Standard Package 500
Win Source Part Number 1035636-PR03000204700JAC00
Ultra Librarian 3D Model Ultra Librarian PR03000204700JAC00 CAD Model

Description

The PR03000204700JAC00 is a through-hole resistor component manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Series: PR03
  • Win Source Part Number: 1035636-PR03000204700JAC00
  • Features: Flame Retardant Coating, Fusible, Safety Design
  • Resistance: 470 Ohms
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Standard Package: 500
  • ECCN: EAR99
  • HTSUS Code: 8533.21.0090
