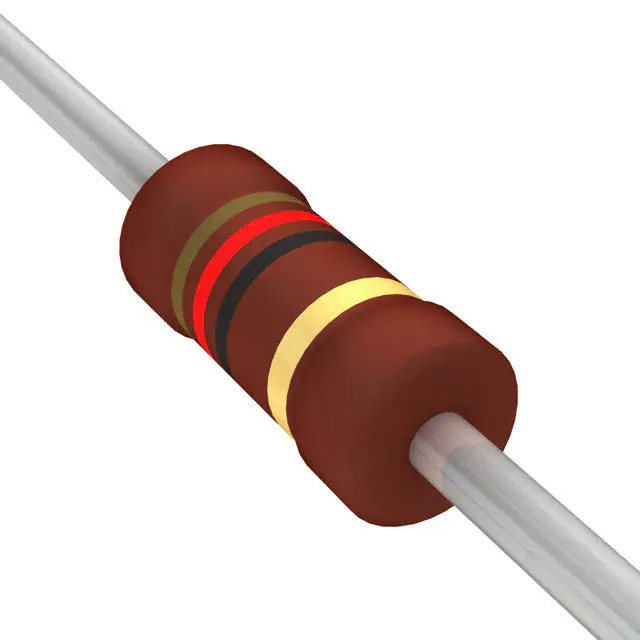

Same model may have multiple batches, images only for reference.
PR02000201209JA100 Vishay
Same model may have multiple batches, images only for reference.

PR02000201209JA100

Part No PR02000201209JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 12 OHM 5% 2W AXIAL
Datasheet
PR02000201209JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Product Status Active
Resistance 12 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374931-PR02000201209JA100
Ultra Librarian 3D Model Ultra Librarian PR02000201209JA100 CAD Model

Description

The PR02 series resistor from Vishay Beyschlag/Draloric/BC Components is a high-quality through-hole resistor with a resistance of 12 Ohms and a power rating of 2W.

  • Resistance: 12 Ohms
  • Power Rating: 2W
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Features: Automotive AEC-Q200 compliance, flame retardant coating, fusible nature, and safety features
  • Package/Case: Axial
  • HTSUS Code: 8533.21.0090
  • Size/Dimension: 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
  • REACH: Unaffected
