Same model may have multiple batches, images only for reference.

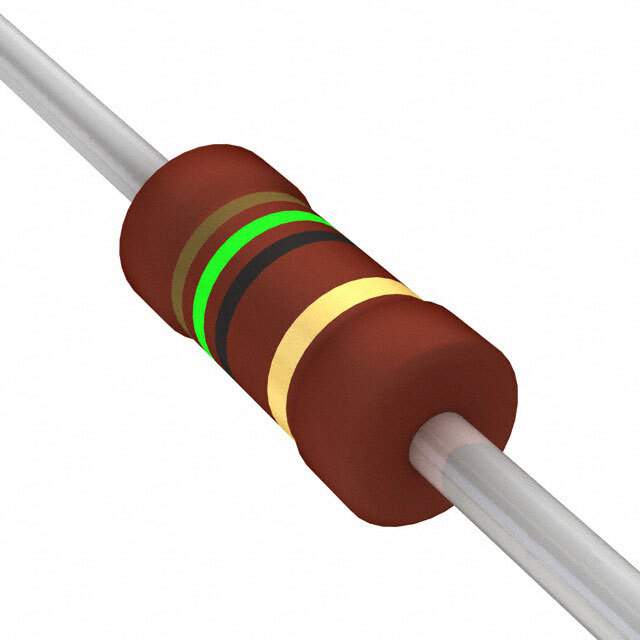

PR01000101509JR500 Real Image
Same model may have multiple batches, images only for reference.

PR01000101509JR500

Part No PR01000101509JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 15 OHM 1W 5% AXIAL / 15 Ohms ±5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety Metal Film
Datasheet
PR01000101509JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR01
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 15 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names 5073NW15R00JAFX,BC15W-1TR,PPC15W-1CT,2306 197 23159,BC15W-1CTINACTIVE,BC15W-1CT-ND,230619723159,5073NW15R00J12AFX,BC15W-1TR-ND,PPC15W-1TR-NDR,BC15W-1CT,BC15W-1TRINACTIVE,PPC15W-1TR,5073NW15R00J12AFXBC,PPC15W-1CT-NDR
Standard Package 5,000
Win Source Part Number 1141443-PR01000101509JR500
Ultra Librarian 3D Model Ultra Librarian PR01000101509JR500 CAD Model

Description

The PR01 series from Vishay is a through-hole resistor with a metal film composition and a power rating of 1W.

  • Composition: Metal Film
  • Power Rating: 1W
  • Resistance: 15Ω
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Standard Package: 5,000 Units
  • AEC-Q200: Compliant
  • Features: Flame Retardant Coated, Fusible, Safety Rated
  • Terminations: 2
  • Dimension: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
  • Package/Case: Axial
  • Supplier Device Package: Axial
  • ECCN: EAR99
  • HTSUS: 8533.21.0090
  • MSL Level: Not Applicable
  • REACH Status: Unaffected
