Same model may have multiple batches, images only for reference.

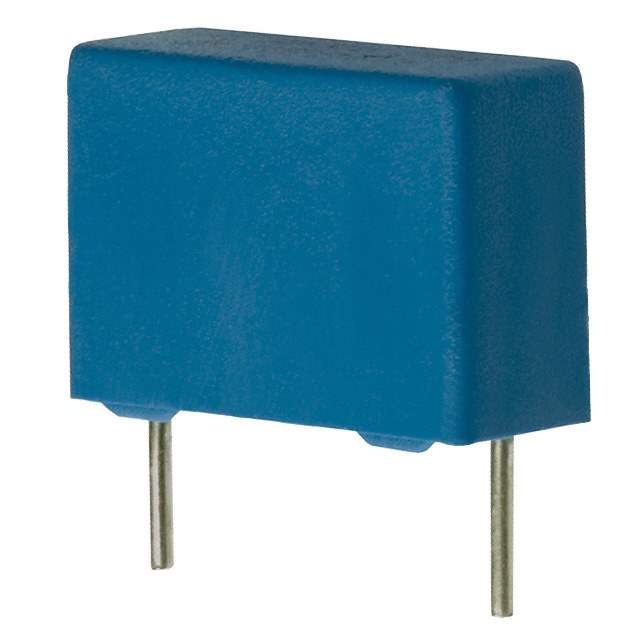

B32652A6683J189 Real Image
Same model may have multiple batches, images only for reference.

B32652A6683J189

Part No B32652A6683J189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.068UF 5% 630VDC RAD
Datasheet
B32652A6683J189 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Capacitance 0.068μF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Dimension 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Win Source Part Number 000026-B32652A6683J189
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32652A6683J189 CAD Model

Description

Description of B32652A6683J189

The B32652A6683J189 capacitor offers advanced features for high-frequency and high-voltage applications. As a metallized polypropylene film capacitor, it combines robustness with efficiency, making it suitable for power electronic systems.

  • Features:
    • High surge voltage capability.
    • Stable electrical characteristics over time.
    • Compact form factor.
  • Benefits:
    • Long lifespan with high reliability.
    • Efficient power management.
    • Easy integration into various systems.
  • Applications:
    • Switch-mode power supplies.
    • Motor drives.
    • DC-DC converters.
