Same model may have multiple batches, images only for reference.

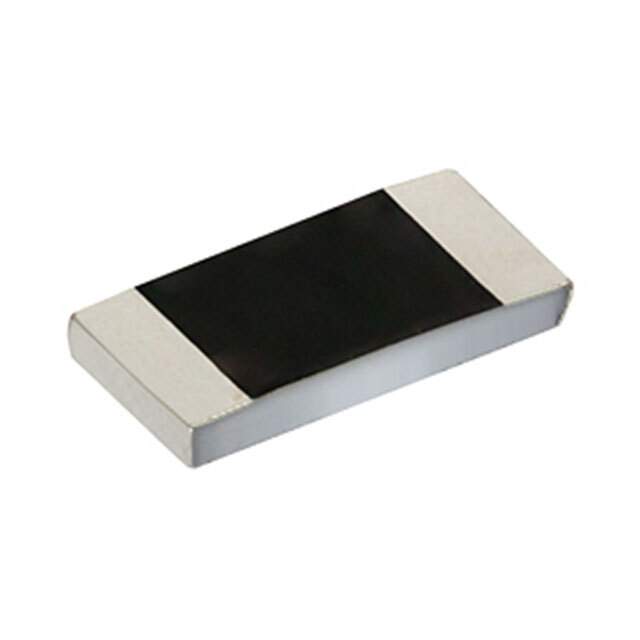

PHPA2512E10R0BST1 Real Image
Same model may have multiple batches, images only for reference.

PHPA2512E10R0BST1

Part No PHPA2512E10R0BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description THIN FILM RES SMD 10 OHM 0.1% 2. / 10 Ohms ±0.1% 2.5W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant Thin Film
Datasheet
PHPA2512E10R0BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHPA
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±0.1%
Power (Watts) 2.5W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.259" L x 0.124" W (6.58mm x 3.15mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341349-PHPA2512E10R0BST1
Ultra Librarian 3D Model Ultra Librarian PHPA2512E10R0BST1 CAD Model

Description

The Vishay Dale Thin Film Chip Resistor is a surface-mountable resistor used in electronic circuits.

  • Series: PHPA
  • Power Rating: 2.5W
  • Resistance: 10 Ohms
  • Tolerance: ±0.1%
  • Features: Anti-Sulfur, Automotive AEC-Q200, High Power, and Moisture-Resistant
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Temperature Coefficient: ±25ppm/°C
  • Operating Temperature: -55°C to 155°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
