Same model may have multiple batches, images only for reference.

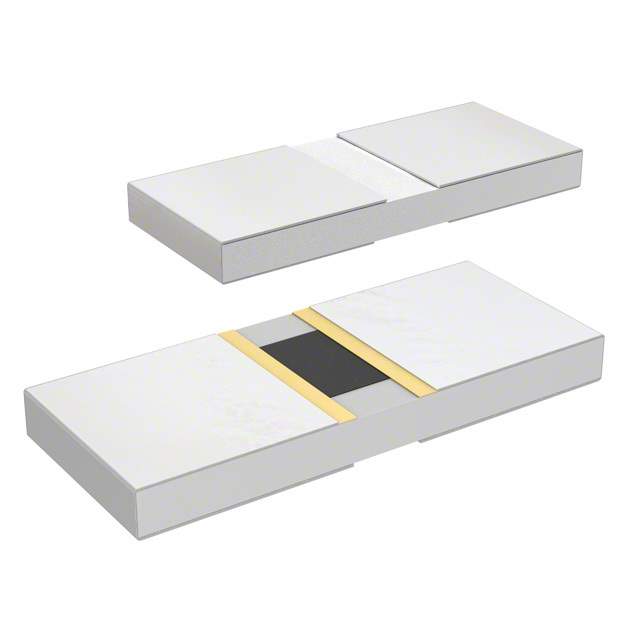

PHP01206E40R2BST5 Real Image
Same model may have multiple batches, images only for reference.

PHP01206E40R2BST5

Part No PHP01206E40R2BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 40.2 OHM 0.1% 1W 1206 / 40.2 Ohms ±0.1% 1W Chip Resistor 1206 (3216 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP01206E40R2BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 40.2 Ohms
Tolerance ±0.1%
Power (Watts) 1W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350682-PHP01206E40R2BST5
Ultra Librarian 3D Model Ultra Librarian PHP01206E40R2BST5 CAD Model

Description

The PHP01206E40R2BST5 by Vishay Dale Thin Film is a surface mount chip resistor that is part of the PHP series.

  • Manufacturer: Vishay Dale Thin Film
  • Series: PHP
  • Mounting Type: Surface Mount
  • Power Rating: 1W
  • Resistance: 40.2 Ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Package / Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 155°C
  • Features: Flame Proof, Moisture Resistant, Safety
  • Standard Package: 500
