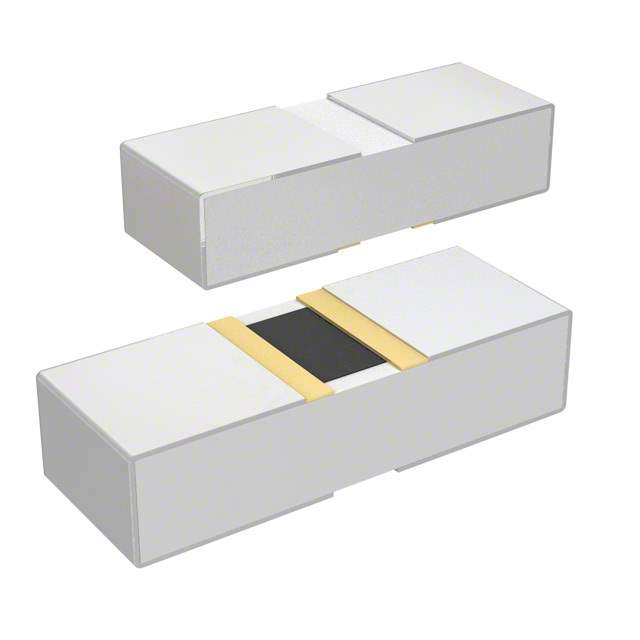

PHP00603E4991BST1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 4.99 kOhms
Tolerance ±0.1%
Power (Watts) 0.375W, 3/8W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349609-PHP00603E4991BST1
Ultra Librarian 3D Model Ultra Librarian PHP00603E4991BST1 CAD Model

Description

The Vishay Dale Thin Film PHP series chip resistor is a thin film resistor with a resistance of 4.99 kOhms. Bold the product name (e.g., BAV99S,135 → PHP series) and manufacturer (e.g., Nexperia USA Inc. → Vishay Dale Thin Film).

  • Features: Flame Proof, Moisture Resistant
  • Resistance: 4.99 kOhms
  • Power Rating: 0.375W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Package Size: 0603 (1608 Metric)
  • Seated Height: 0.020" (0.51mm)
  • Packaging: Tape & Reel
  • Quantity per Reel: 1,000
