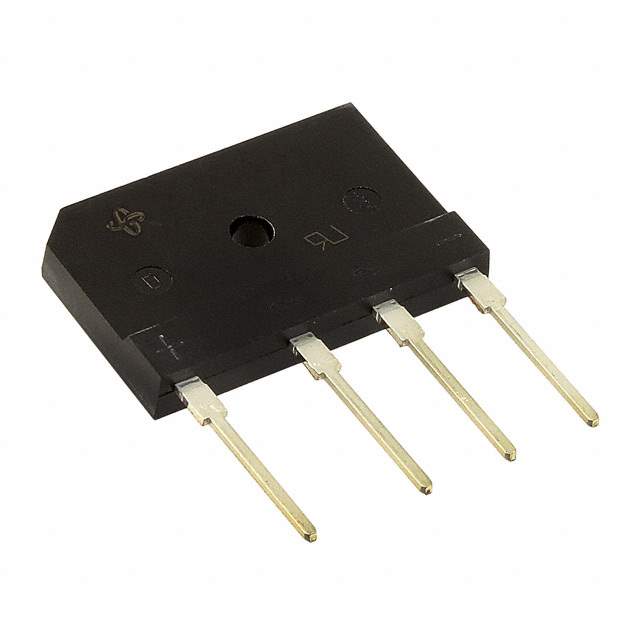

PB3010-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 35 Weeks
Features Bridge Rectifier Single Phase Standard 1 kV Through Hole isoCINK+™ PB
Manufacturer Vishay
Series isoCink+™
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, PB
Case / Package isoCINK+™ PB
Family Name PB3010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number PB3010-E3/45-ND, PB3010-E3/45GI
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888575-PB3010-E3/45
Ultra Librarian 3D Model Ultra Librarian PB3010-E3/45 CAD Model

Description

The Vishay PB3010-E3/45 is a bridge rectifier that is designed for single-phase standard applications. Vishay manufactures it.

  • Application: Single-Phase Standard
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 150°C
  • Package: isoCINK+™ PB
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 20
  • Estimated Production Lead Time: 35 weeks
