Same model may have multiple batches, images only for reference.

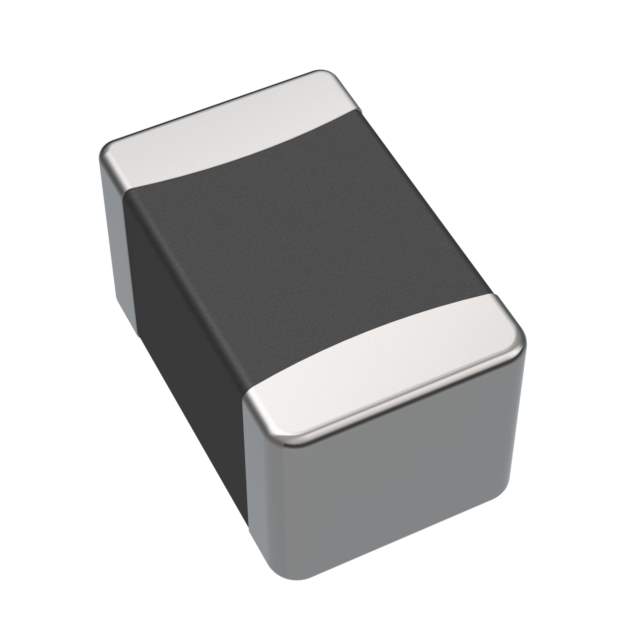

MLV0805E32503T Real Image
Same model may have multiple batches, images only for reference.

MLV0805E32503T

Part No MLV0805E32503T
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 41.5V 30A 0805  /  41.5 V 30 A Varistor 1 Circuit Surface Mount 0805 (2012 Metric)
Datasheet
MLV0805E32503T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Vishay Beyschlag/Draloric/BC Components
Package Tape & Reel
Maximum AC Volts 25 V
Maximum DC Volts 30 V
Varistor Voltage (Min) 37 V
Varistor Voltage (Typ) 41.5 V
Varistor Voltage (Max) 46 V
Current - Surge 30 A
Energy 0.1J
Number of Circuits 1
Capacitance @ Frequency 80 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names BC3386TR,BC3386DKR,BC3386CT
Standard Package 4,000
Win Source Part Number 974441-MLV0805E32503T
Ultra Librarian 3D Model Ultra Librarian MLV0805E32503T CAD Model

Description

The MLV0805E32503T is a TVS varistor from Vishay Beyschlag/Draloric/BC Components.

  • Package: Tape & reel
  • Standard Package: 4,000 units
  • Mounting Technology: SMD (SMT)
  • Package/Case: 0805 (2012 metric)
  • Capacitance: 80 pF @ 1 MHz
  • Varistor Voltage Range: 37 V to 46 V
  • Maximum AC Voltage: 25 V
  • Maximum DC Voltage: 30 V
  • Energy Rating: 0.1J
  • Surge Current: 30 A
  • MSL Level: 1
  • HTSUS: 8533.40.4000
