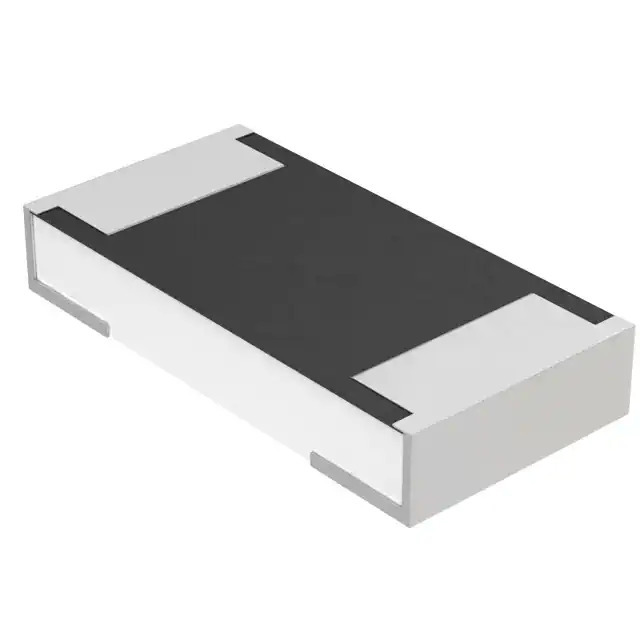

Same model may have multiple batches, images only for reference.
MFU1206FF03000P100 Vishay
Same model may have multiple batches, images only for reference.

MFU1206FF03000P100

Part No MFU1206FF03000P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 3A 63VDC 1206 / 3 A AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
MFU1206FF03000P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3 A
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.0229
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
DC Cold Resistance 0.044 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361415-MFU1206FF03000P100
Ultra Librarian 3D Model Ultra Librarian MFU1206FF03000P100 CAD Model

Description

The MFU1206FF03000P100 is a surface mount fuse from Vishay Beyschlag/Draloric/BC Components.

  • Series: MFU
  • Package Size: 1206 (3216 Metric)
  • Current Rating: 3A
  • Voltage Rating: 63V
  • Fuse Type: Fast Blow
  • Breaking Capacity (Rated Voltage): 50A
  • Melting I²t: 0.0229
  • Approvals: UL
  • Size/Dimension: 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
  • Mounting Type: Surface Mount
