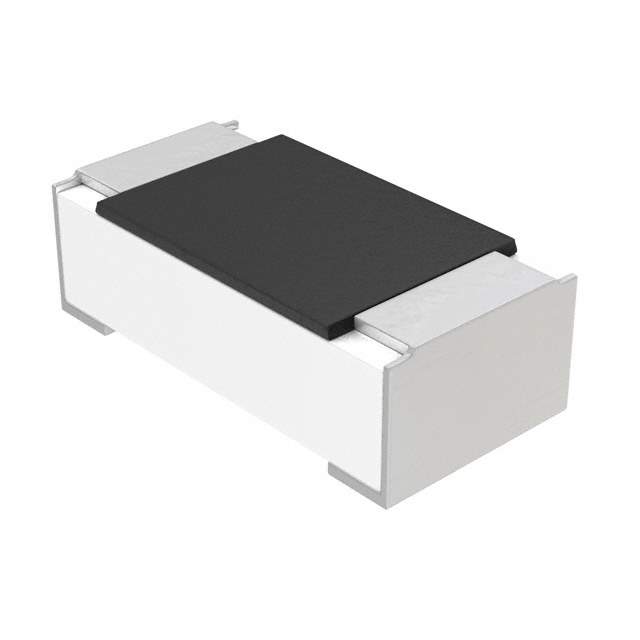

Same model may have multiple batches, images only for reference.

MCS0402MD1004BE000

Name: MCS0402MD1004BE000
Brand: Vishay
SKU: 1022058
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MCS0402MD1004BE000
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	MCS 0402-25 0.1% AT E0 1M0 / 1 MOhms ±0.1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	MCS AT - Precision
Package	Tape & Reel
Resistance	1 mOhms
Tolerance	±0.1%
Power (Watts)	0.1W, 1/10W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient	±25ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Ratings	AEC-Q200
Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.015" (0.37mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-MCS0402MD1004BE000CT,541-MCS0402MD1004BE000TR,541-MCS0402MD1004BE000DKR
Standard Package	10,000
Win Source Part Number	1022058-MCS0402MD1004BE000
Ultra Librarian 3D Model	Ultra Librarian MCS0402MD1004BE000 CAD Model

Description

The MCS0402MD1004BE000 is a chip resistor with a 0402 (1005 Metric) package type manufactured by Vishay Dale.

Series: MCS AT - Precision series
Standard Package: 10,000
Tolerance: ±0.1%
Temperature Coefficient: ±25ppm/°C
Features: anti-sulfur, automotive AEC-Q200 rated resistor
Power Rating: 0.1W (1/10W)
Resistance: 1 mOhms
Height: 0.015" (0.37mm)
Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
