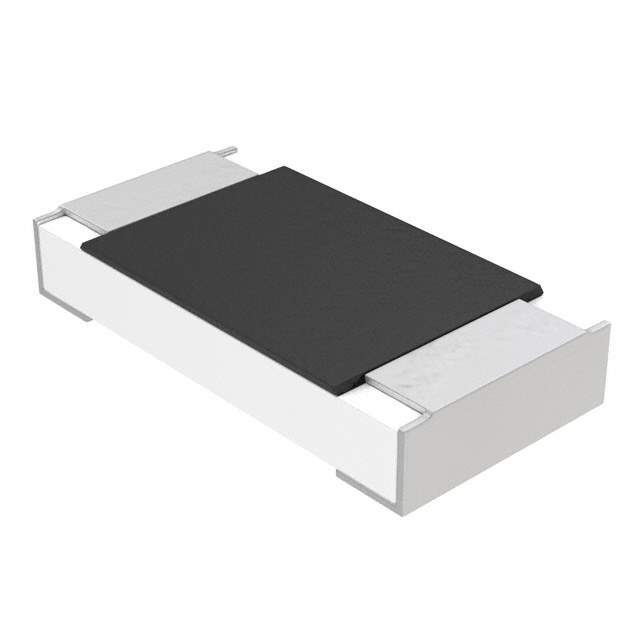

Same model may have multiple batches, images only for reference.

MCA1206MD3304BP100

Name: MCA1206MD3304BP100
Brand: Vishay
SKU: 1382856
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MCA1206MD3304BP100
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 3.3M OHM 0.1% 1/4W 1206 / 3.3 MOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet	MCA1206MD3304BP100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay
Series	MCA AT - Precision
Package	Tape & Reel
Resistance	3.3 MOhms
Tolerance	±0.1%
Power (Watts)	0.25W, 1/4W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient	±25ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.026" (0.65mm)
Number of Terminations	2
Failure Rate	-
Base Product Number	MCA1206
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Standard Package	1,000 pcs
Win Source Part Number	1382856-MCA1206MD3304BP100
Ultra Librarian 3D Model	Ultra Librarian MCA1206MD3304BP100 CAD Model

Description

The MCA1206MD3304BP100 is a chip resistor from Vishay. It is part of the MCA AT - Precision series.

Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height: 0.026" (0.65mm)
Resistance: 3.3 MOhms
Tolerance: ±0.1%
Temperature Coefficient: ±25ppm/°C
AEC-Q200 Rated: Yes
Features: Anti-Sulfur, Moisture Resistant
Terminations: 2
Power Rating: 0.25W (1/4W)
Package: 1206 (3216 Metric)
Operating Temperature Range: -55°C to 155°C
REACH: Unaffected
