Products specifications

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) at If 760mV at 30A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1mA at 45V
Operating Temperature - Junction -65°C ~ 150°C
Mounting Style Through Hole

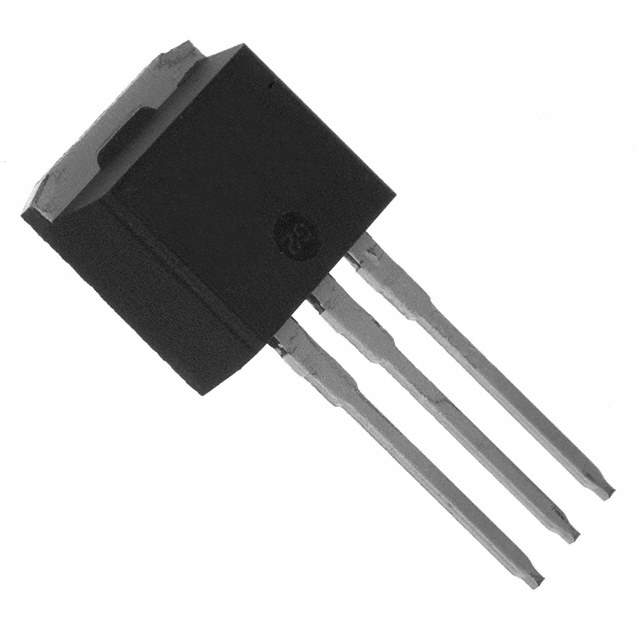

Manufacturer Package TO-262-3 Long Leads, I2Pak, TO-262AA
Supplier Device Package TO-262
Family Part Number MBR3045CT
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1216099-MBR3045CT-1
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR3045CT-1 CAD Model

Description

The MBR3045CT-1 is a Schottky Barrier Rectifier from Vishay Semiconductors. It is designed for high-current, low-voltage power rectification applications, offering fast switching speeds and low forward voltage drop.

Applications:

  • Switching Power Supplies
  • DC-DC Converters
  • Freewheeling diodes in inductive loads
  • Polarity protection
  • High-frequency rectifiers

Features:

  • High Surge Current Capability
  • Low Forward Voltage Drop: Reduces power loss and improves efficiency
  • High-Temperature Operation: Suitable for use in demanding thermal environments.
  • Guard Ring for Overvoltage Protection
  • Halogen-Free
  • Pb-Free

Benefits:

  • Improved Efficiency: Low forward voltage drop minimizes power losses, leading to higher efficiency in power conversion applications.
  • Reduced Heat Dissipation: Lower power dissipation translates to reduced heat generation, simplifying thermal management.
  • Enhanced Reliability: High surge current capability and guard ring protection ensure robust performance and protection against voltage transients.
  • Environmentally Friendly: Halogen-free and Pb-free construction complies with environmental regulations.
  • Versatile Applications: Suitable for a wide range of power rectification applications, including switching power supplies, DC-DC converters, and freewheeling diodes.

The MBR3045CT-1 is specifically designed for applications requiring efficient and reliable power rectification. Its low forward voltage drop reduces power losses, improving the overall efficiency of the circuit. The high surge current capability allows it to withstand transient current spikes without damage. The guard ring structure provides overvoltage protection, enhancing the reliability of the device.

In switching power supplies, the MBR3045CT-1 is used as a rectifier to convert AC voltage to DC voltage. Its fast switching speed and low forward voltage drop contribute to the high efficiency of the power supply. In DC-DC converters, it is used to rectify the output voltage, ensuring a stable and regulated DC output. As a freewheeling diode, it protects inductive loads from voltage spikes when the current is switched off. The device's high-temperature operation allows it to be used in demanding thermal environments without derating its performance.
