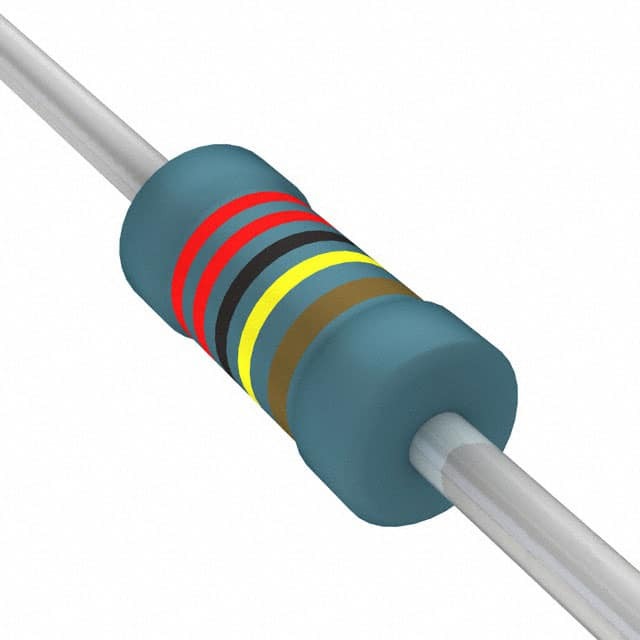

MBB02070C2209FCT00 Vishay
Same model may have multiple batches, images only for reference.

MBB02070C2209FCT00

Part No MBB02070C2209FCT00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 22 OHM 0.6W 1% AXIAL
Datasheet
MBB02070C2209FCT00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MBB/SMA 0207 - Professional
Product Status Active
Resistance 22 Ohms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package -
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374303-MBB02070C2209FCT00
Ultra Librarian 3D Model Ultra Librarian MBB02070C2209FCT00 CAD Model

Description

The 1374303-MBB02070C2209FCT00 is a through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Series: MBB/SMA 0207 - Professional
  • Applications: Automotive
  • Resistance: 22 Ohms
  • Tolerance: ±1%
  • Power Rating: 0.6W
  • Operating Temperature: -55°C to 155°C
  • Size/Dimension: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
  • Composition: Metal Film
  • Terminations: Two
