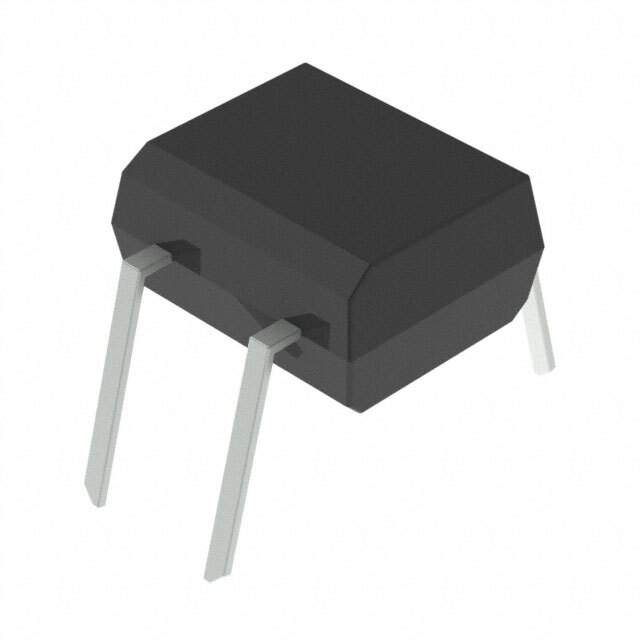

MB6M-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MB6M-E3/45

Part No MB6M-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE GPP 0.5A 600V MBM 4DIP
Datasheet
MB6M-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package MBM
Win Source Part Number 132798-MB6M-E3/45
Ultra Librarian 3D Model Ultra Librarian MB6M-E3/45 CAD Model

Description

The Vishay MB6M-E3/45 diode is a single-phase standard technology diode that is ideal for use in various electronic applications.

  • Diode Technology: Standard
  • Average Rectified Current: 500mA
  • Forward Voltage: 1V @ 400mA
  • Reverse Leakage Current: 5µA @ 600V
  • Peak Reverse Voltage: 600V
  • Package: tube/rail
  • Overall: reliable and efficient solution for your electronic circuitry needs.
