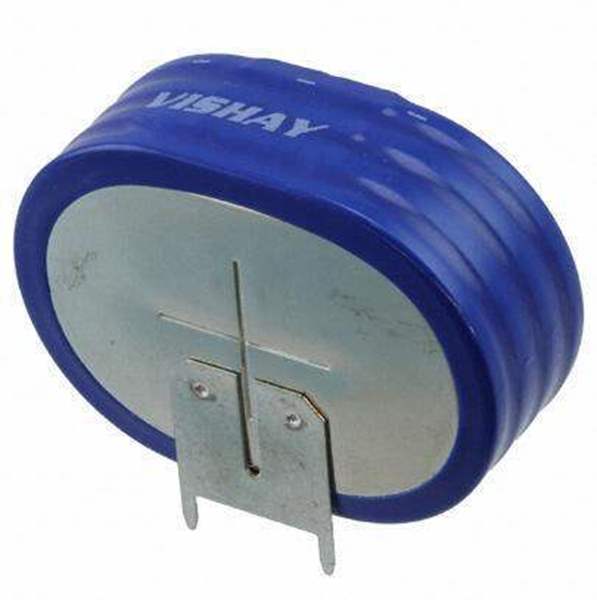

MAL219690102E3Vishay Beyschlag/Draloric/BC Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Capacitors Electric Double Layer Capacitors (EDLC), Supercapacitors
Packaging  Tray
Part Status Active
Capacitance 90 F
Tolerance -20%, +80%
Voltage - Rated 5.6 V
ESR (Equivalent Series Resistance) 60mOhm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Coin, Stacked Vertical
Win Source Part Number WS1307317-MAL219690102E3
Ultra Librarian 3D Model Ultra Librarian MAL219690102E3 CAD Model

Description

90 F (EDLC) Supercapacitor 5.6 V Coin, Stacked Vertical 60mOhm @ 1kHz 2000 Hrs @ 85°C
