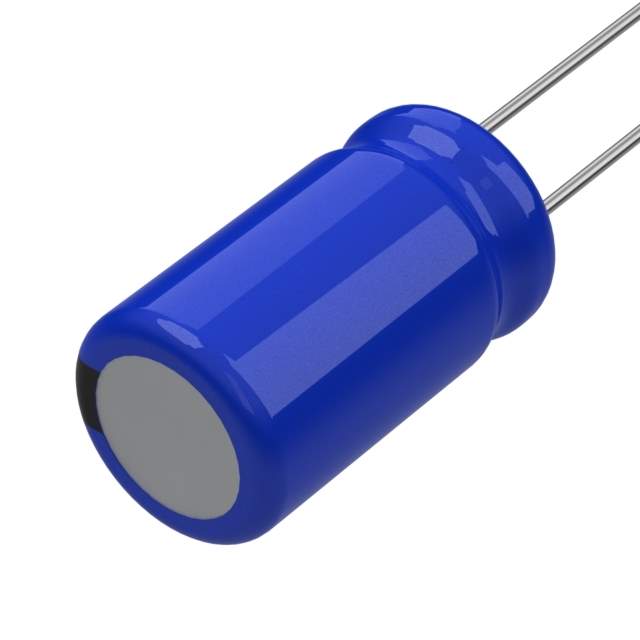

Same model may have multiple batches, images only for reference.

MAL215266229E3

Name: MAL215266229E3
Brand: Vishay
SKU: 1382731
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL215266229E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 400V RADIAL / 22 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet	MAL215266229E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay
Series	152 RMH
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	150 mA @ 100 Hz
Impedance	3.8 Ohms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	250 pcs
Win Source Part Number	1382731-MAL215266229E3
Ultra Librarian 3D Model	Ultra Librarian MAL215266229E3 CAD Model

Description

The MAL215266229E3 is an aluminum electrolytic capacitor from Vishay's 152 RMH series. It has a capacitance of 22 μF and a voltage rating of 400V, making it suitable for automotive applications.

Capacitance: 22 μF
Voltage Rating: 400V
Height: 1.063" (27.00mm)
Diameter: 0.492" (12.50mm)
Lifetime: 3000 hours @ 105°C
Polarization: Polarized
Package: Radial, Can
Mounting Type: Through-Hole
Manufacturer: Vishay
