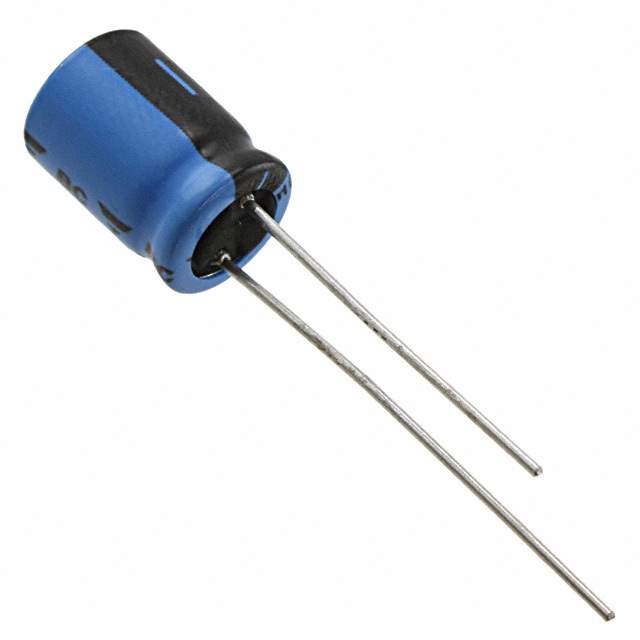

The MAL214275331E3 is a Vishay BCcomponents aluminum electrolytic capacitor. It is a polarized capacitor, meaning it has a positive and negative terminal and must be connected with the correct polarity in a circuit. These capacitors are known for their relatively high capacitance values for their size, making them suitable for various applications where energy storage or filtering is required.

Applications:

• Power Supplies: Used for smoothing and filtering DC voltage in power supplies.
• Audio Amplifiers: Employed for coupling and decoupling signals, as well as filtering out unwanted noise.
• Industrial Electronics: Utilized in various industrial electronic equipment for filtering, energy storage, and timing circuits.
• Consumer Electronics: Found in various consumer electronic devices such as televisions, audio equipment, and home appliances.
• Renewable Energy Systems: Used in solar inverters and wind turbine systems for DC link capacitance.

Features:

• High Capacitance: Offers a capacitance value of 330 µF.
• Voltage Rating: Features a voltage rating of 63 V DC.
• Polarized Capacitor: Has defined positive and negative terminals.
• Aluminum Electrolytic Technology: Uses aluminum electrolytic technology.
• Long Life: Designed for extended operational lifespan.
• Radial Leads: Equipped with radial leads for through-hole mounting.

Benefits:

• Effective Filtering: Provides efficient filtering of unwanted frequencies and noise in electronic circuits.
• Energy Storage: Offers reliable energy storage capabilities for applications requiring a power reservoir.
• Stable Performance: Delivers stable performance over a wide range of operating conditions.
• Compact Size: Offers a high capacitance value in a relatively small package.
• Cost-Effective: Provides a cost-effective solution for capacitance requirements in various applications.

Additional Details:

The MAL214275331E3 capacitor is designed for general-purpose applications requiring a balance of capacitance, voltage rating, and physical size. It adheres to industry standards for safety and performance. The ripple current rating is an important parameter for power supply applications, indicating the capacitor's ability to handle AC currents superimposed on the DC voltage. This capacitor's datasheets specify its operating temperature range, ESR (Equivalent Series Resistance), and other critical parameters that are necessary for proper circuit design. The specific dimensions and lead spacing are readily available for accurate PCB layout design.
