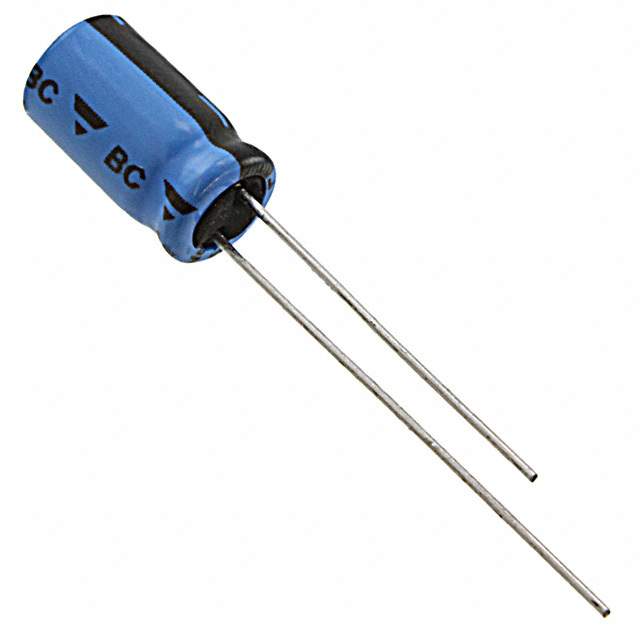

MAL214274331E3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 142 RHS
Package Tape & Box (TB)
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2500 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 270 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 1038623-MAL214274331E3
Ultra Librarian 3D Model Ultra Librarian MAL214274331E3 CAD Model

Description

The MAL214274331E3 is an aluminum electrolytic capacitor with a capacitance of 330 μF and a voltage rating of 10V.

  • Capacitance: 330 μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • Series: 142 RHS
  • Ripple Current: 270 mA @ 10 kHz
  • Application: General Purpose
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.098" (2.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
