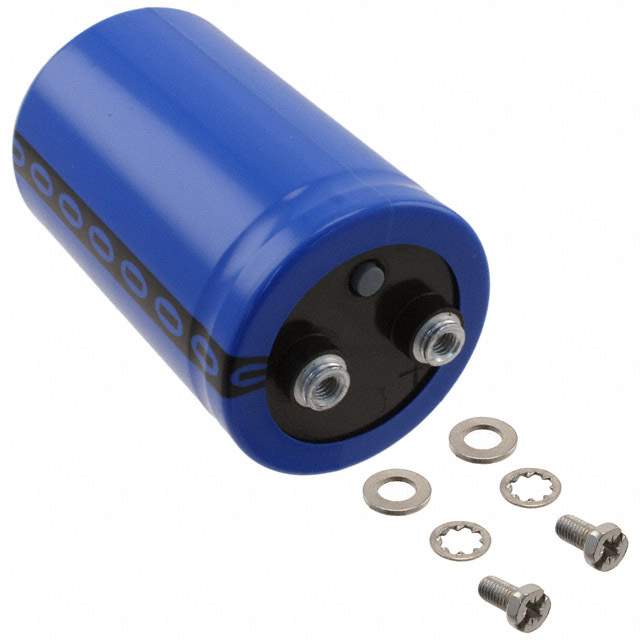

MAL210257562E3 Real Image
Same model may have multiple batches, images only for reference.

MAL210257562E3

Part No MAL210257562E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 5600UF 20% 450V SCREW / 5600 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 23mOhm @ 100Hz 10000 Hrs @ 85°C
Datasheet
MAL210257562E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 102 PHR-ST
Package Bulk
Capacitance 5600 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 23mOhm @ 100Hz
Lifetime @ Temp. 10000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 17.3 A @ 100 Hz
Impedance 15 mOhms
Lead Spacing 1.252" (31.80mm)
Dimension 2.992" Dia (76.00mm)
Height - Seated (Max) 5.972" (151.70mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0085
Standard Package 12
Win Source Part Number 1181498-MAL210257562E3
Ultra Librarian 3D Model Ultra Librarian MAL210257562E3 CAD Model

Description

This electronic component is a MAL210257562E3 manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Category: capacitor
  • Component Type: Aluminum Electrolytic Capacitors
  • Series: 102 PHR-ST
  • Package: Bulk
  • Application: General Purpose
  • Height (Seated): 5.972" (151.70mm)
  • Standard Package: 12 Pieces
  • Capacitance: 5600 µF
  • Tolerance: ±20%
  • Rated Voltage: 450 V
  • Lead Spacing: 1.252" (31.80mm)
  • Impedance: 15 mOhms
  • ESR (Equivalent Series Resistance): 23mOhm @ 100Hz
  • Lifetime @ temp.: 10000 Hrs @ 85°C
  • Polar: Yes
  • Mounting Type: Chassis Mount
  • Package/Case: Radial, Can - Screw Terminals
  • Operating Temperature: -40°C ~ 85°C
  • MSL Level: Not Applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0085
  • Ripple Current @ low frequency: 17.3 A @ 100 Hz
