Same model may have multiple batches, images only for reference.

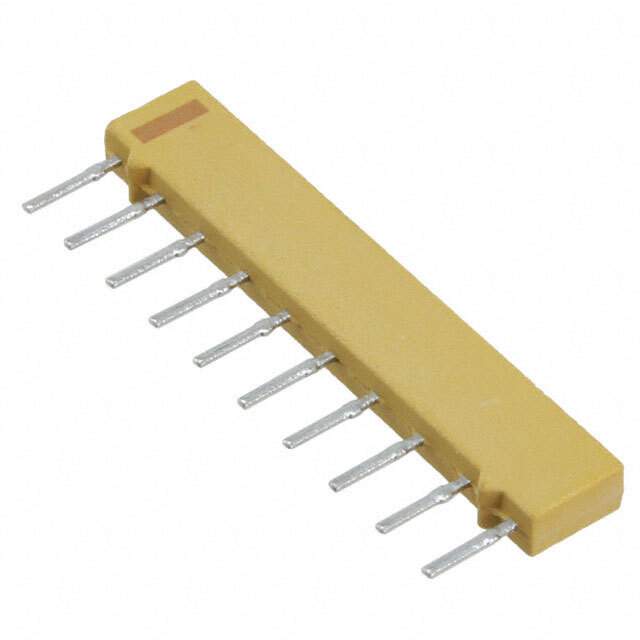

M8340109K4701GCD03 Real Image
Same model may have multiple batches, images only for reference.

M8340109K4701GCD03

Part No M8340109K4701GCD03
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 9 RES 4.7K OHM 10SIP
Datasheet
M8340109K4701GCD03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 9 Weeks
Features 4.7k Ohm ±2% 120mW Power Per Element Bussed 9 Resistor Network/Array ±100ppm/°C 10-SIP
Manufacturer Vishay
Series Military, MIL-PRF-83401/09, RZ090
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Package 10-SIP
Case / Package 10-SIP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0050
Other Part Number 1135-1093-5, 1135-1093-5-MIL
Quantity per package 22
Popularity High
Supply and Demand Status Balance
Win Source Part Number 925005-M8340109K4701GCD03
Ultra Librarian 3D Model Ultra Librarian M8340109K4701GCD03 CAD Model

Description

Vishay's Military, MIL-PRF-83401/09, RZ090 resistor network/array is a bussed 9 resistor network that features 4.7k Ohm ±2% 120mW power per element.

  • Power per element: 120mW
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: ±100ppm/°C
  • Package: 10-SIP
  • Mounting: Through Hole
  • Category: Resistor
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Standard Package: 22
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 9 weeks
  • HTSUS Code: 8533.21.0050
  • Other Part Numbers: 1135-1093-5 and 1135-1093-5-MIL
