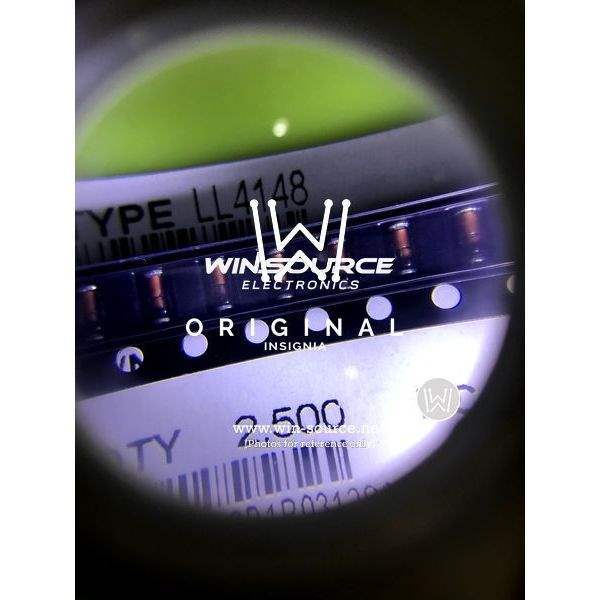

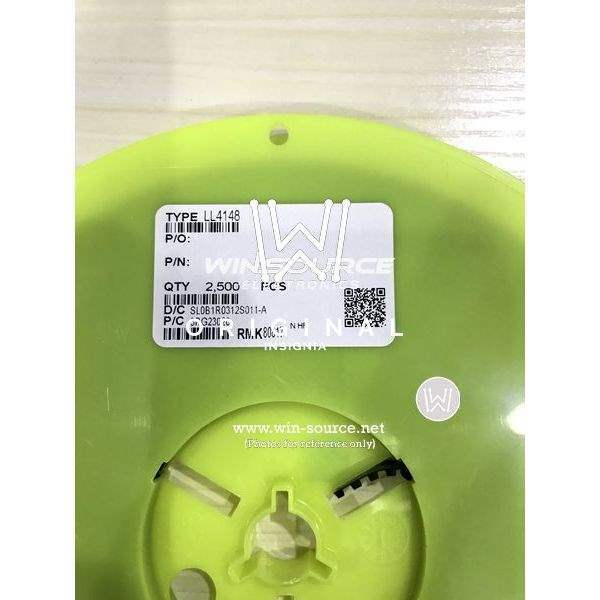

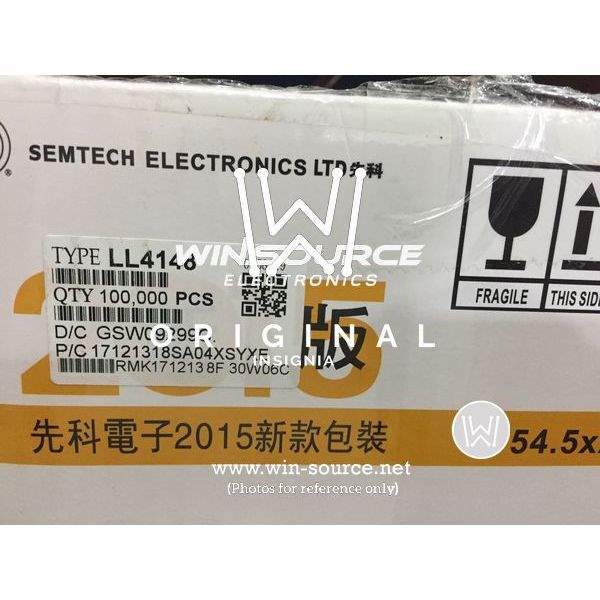

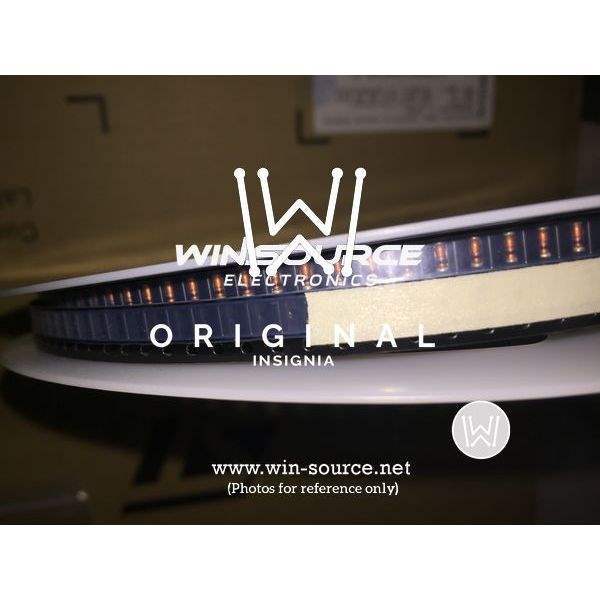

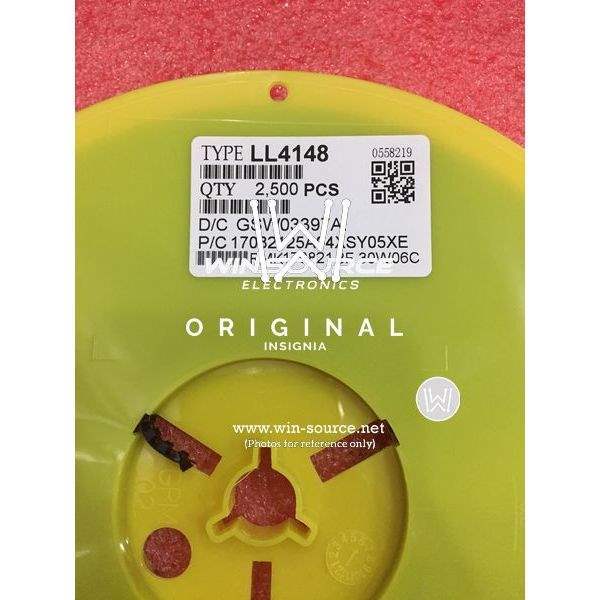

LL4148-GS18 Vishay LL4148-GS18 Real Image LL4148-GS18 label picture 2 LL4148-GS18 label picture 3 LL4148-GS18 label picture 4 LL4148-GS18 label picture 5 LL4148-GS18 label picture 6 LL4148-GS18 real image LL4148-GS18 real image 2
Same model may have multiple batches, images only for reference.
LL4148-GS18 Vishay LL4148-GS18 Real Image LL4148-GS18 label picture 2 LL4148-GS18 label picture 3 LL4148-GS18 label picture 4 LL4148-GS18 label picture 5 LL4148-GS18 label picture 6 LL4148-GS18 real image LL4148-GS18 real image 2
LL4148-GS18 Vishay LL4148-GS18 Real Image LL4148-GS18 label picture 2 LL4148-GS18 label picture 3 LL4148-GS18 label picture 4 LL4148-GS18 label picture 5 LL4148-GS18 label picture 6 LL4148-GS18 real image LL4148-GS18 real image 2
Same model may have multiple batches, images only for reference.

LL4148-GS18

Part No LL4148-GS18
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 300MA SOD80 / Rectifier Diode Small Signal Switching Si 100V 0.3A 8ns Automotive 2-Pin Mini-MELF SOD-80 T/R
Datasheet
LL4148-GS18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 300mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 50mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 5μA @ 75V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-80 MiniMELF
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 002531-LL4148-GS18
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LL4148
Introduction Date April 02, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LL4148-GS18 CAD Model

Description

The Vishay LL4148-GS18 Diode is a high-quality component designed for use in various electronic applications.

  • Family: Discrete Semiconductor Products
  • Suitability: Suitable for use in a wide range of electronic devices
  • Quality: Manufactured to meet the highest standards of quality and reliability
  • Performance: Capable of delivering exceptional performance
  • Type: Standard diode with a fast recovery speed
  • Package: SOD-80 MiniMELF package
