Products specifications Report Issue?

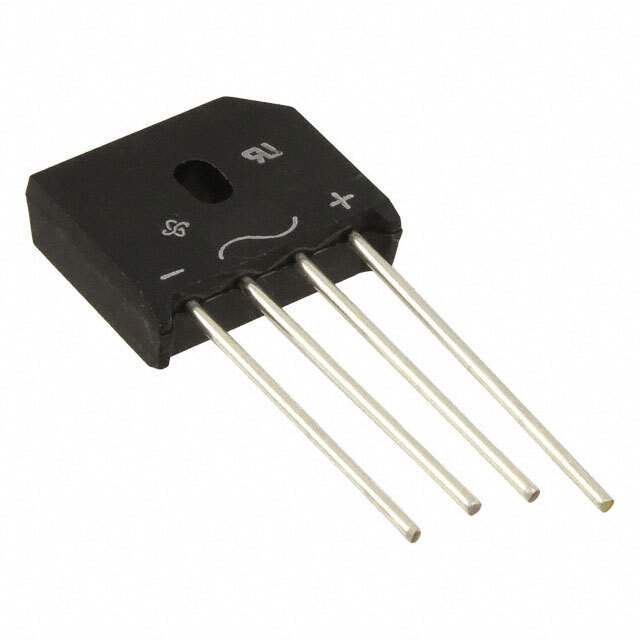

Win Source Part Number WS1310353-KBU6M-E4/51
Category Discrete Semiconductor Products >Diodes >Bridge Rectifiers
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Part Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 6 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Ultra Librarian 3D Model Ultra Librarian KBU6M-E4/51 CAD Model

Description

  • UL recognition, file number E54214
  • Ideal for printed circuit boards
  • High surge current capability
  • Plastic-passivated junction
  • High case dielectric strength of 1500 VRMS
  • Solder dip 275 °C max. 10 s, per JESD 22-B106
