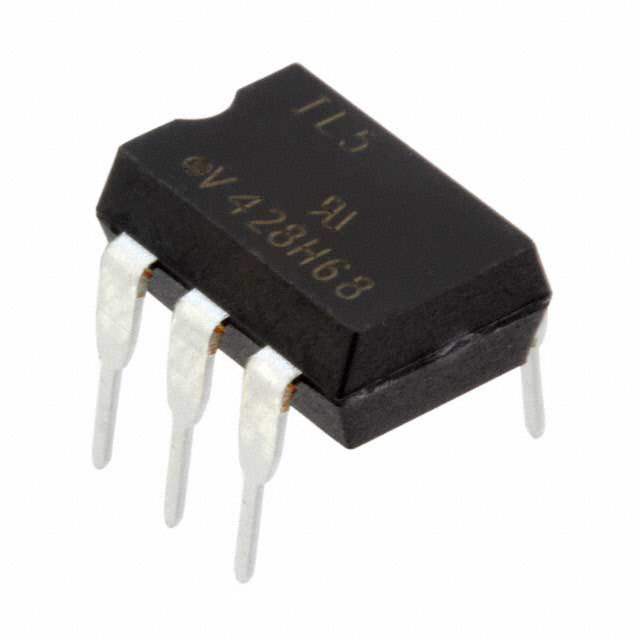

IL5 Real Image
Same model may have multiple batches, images only for reference.

IL5

Part No IL5
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Standard Package 2000
Category Isolators
Family Optoisolators - Transistor Photovoltaic Output
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 50% @ 10mA
Current Transfer Ratio (Max) 400% @ 10mA
Turn On / Turn Off Time (Typ) 2.6µs 7.2µs
Rise / Fall Time (Typ) 7µs 20µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 250mV (Typ)
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300" 7.62mm)
Manufacturer Device Package 6-DIP
Catalog IL1 IL2 IL5 Series
Win Source Part Number 068809-IL5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IL5 CAD Model

Description

It has a limited supply and demand status. This component is designed for use in electronic devices that require a reliable and efficient power supply.

  • Voltage Isolation: 5300Vrms
  • Current Transfer Ratio: 50% @ 10mA

The IL5 is a high-performance device that is ideal for use in various applications. With its advanced features and robust design, this optoisolator is a popular choice among electronic manufacturers. It comes in a standard package of 2000.
