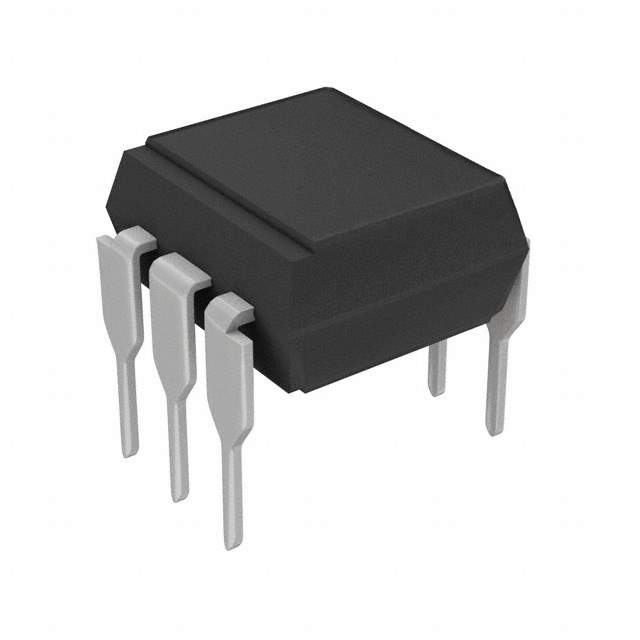

IL4117 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 700V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 1.3mA
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 200μA
Turn On Time 35μs
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, cUR, FIMKO, UR
Win Source Part Number 1045313-IL4117
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IL4117 CAD Model

Description

The Vishay IL4117 is a through-hole mounted triac optocoupler designed for general purpose applications.

  • Mounting Type: Through-hole
  • Optocoupler Type: Triac
  • Application: General purpose
  • Forward Voltage: 1.3V
  • Off-State Voltage: 700V
  • Current Rating: 300mA
  • Isolation Voltage: 5300Vrms
  • Zero-Crossing Circuit: Yes
  • Current Hold: 200μA
  • Package: 6-DIP
  • Operating Temperature: -55°C to 100°C
  • Approvals: BSI, CSA, cUR, FIMKO, UR
