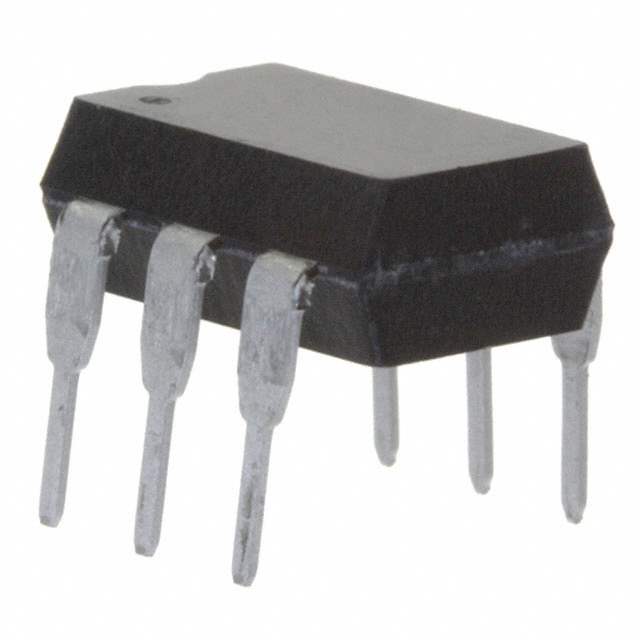

IL2 Real Image
Same model may have multiple batches, images only for reference.

IL2

Part No IL2
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Standard Package 50
Category Isolators
Family Optoisolators - Transistor Photovoltaic Output
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 10mA
Current Transfer Ratio (Max) 500% @ 10mA
Turn On / Turn Off Time (Typ) 1.2µs 2.3µs
Rise / Fall Time (Typ) 2.6µs 2.2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 250mV (Typ)
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300" 7.62mm)
Manufacturer Device Package 6-DIP
Catalog IL1 IL2 IL5 Series
Win Source Part Number 068794-IL2
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing
Ultra Librarian 3D Model Ultra Librarian IL2 CAD Model

Description

The Vishay IL2 is an optoisolator transistor photovoltaic output that is packaged in a 6-DIP package.

  • Series: IL1, IL2, and IL5 series
  • Popularity: Medium
  • Voltage Isolation: 5300Vrms
  • Current Transfer Ratio: 100% @ 10mA
  • Rise/Fall Time: 2.6μs/2.2μs
