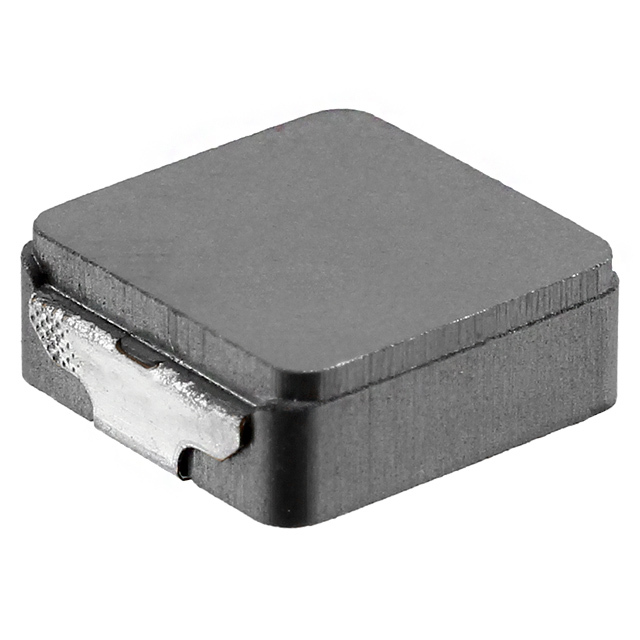

Same model may have multiple batches, images only for reference.
IHLP4040DZER2R2M8A Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IHLP4040DZER2R2M8A

Part No IHLP4040DZER2R2M8A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 2.2UH 15A 8.76MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Molded
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 8.76mOhm Max
Frequency - Self Resonant 3.1MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Supplier Device Package 4040
Size / Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532409-IHLP4040DZER2R2M8A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER2R2M8A CAD Model

Description
