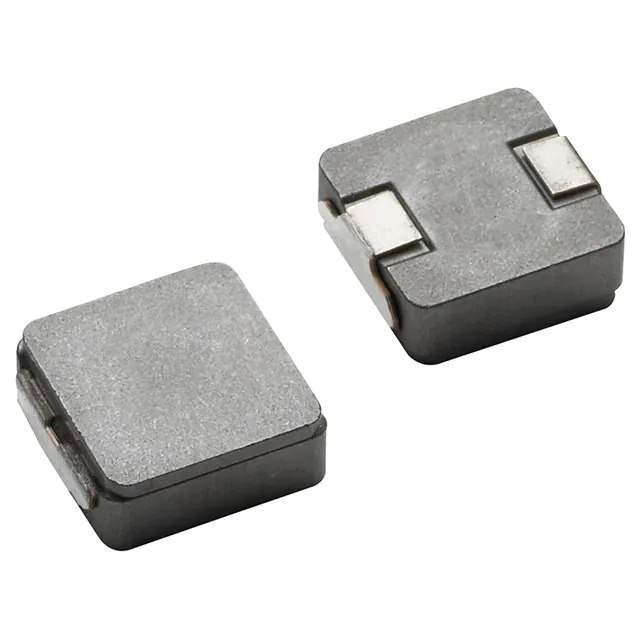

IHLP4040DZER220M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER220M1A

Part No IHLP4040DZER220M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-4040DZ-1A 22 20% ER E3
Datasheet
IHLP4040DZER220M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay
Series IHLP-4040DZ-1A
Package Tape & Reel
Product Status Active
Material - Core Metal Composite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 66mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 156224-IHLP4040DZER220M1A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER220M1A CAD Model

Description

The IHLP-4040DZ-1A is a shielded fixed inductor with a compact size of 0.425" L x 0.400" W (10.80mm x 10.16mm).

  • Size: 0.425" L x 0.400" W (10.80mm x 10.16mm)
  • Inductance: 22 μH
  • Maximum Seated Height: 0.157" (4.00mm)
  • Mounting: Surface mount
  • Package: Nonstandard
  • DC Resistance (DCR): 66mOhm max
  • Current Rating: 5 A
  • Tolerance: ±20%
  • Temperature Range: -55°C to 125°C
  • AEC-Q200 Rated: Yes
  • Core: Metal composite
