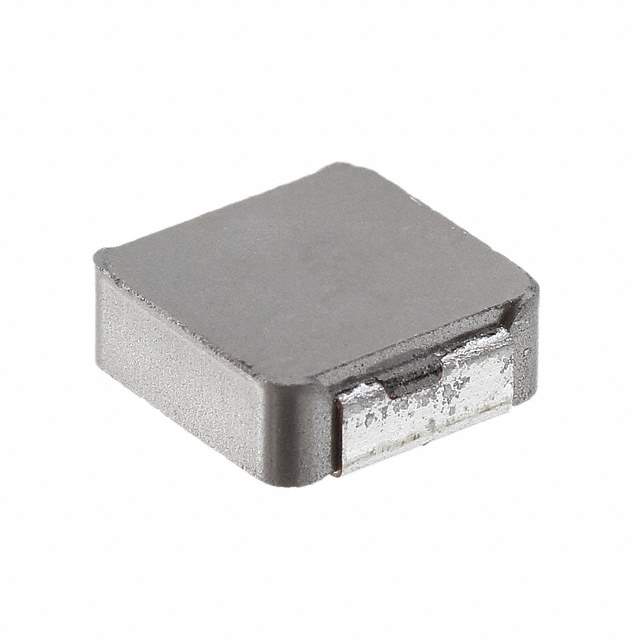

Same model may have multiple batches, images only for reference.

IHLP3232CZER330M11

Name: IHLP3232CZER330M11
Brand: Vishay
SKU: 1327442
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP3232CZER330M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 33UH 3.1A 177 MOHM SMD / 33 µH Shielded Molded Inductor 3.1 A 177mOhm Nonstandard
Datasheet	IHLP3232CZER330M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Molded
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	3.1 A
Current - Saturation (Isat)	2.1A
Shielding	Shielded
DC Resistance (DCR)	177mOhm
Frequency - Self Resonant	5.6MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-IHLP3232CZER330M11TR,541-IHLP3232CZER330M11DKR,541-IHLP3232CZER330M11CT,IHLP3232CZER330M11-ND
Standard Package	1,000
Win Source Part Number	1327442-IHLP3232CZER330M11
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER330M11 CAD Model

Alternative Products

Description

The Vishay Dale IHLP3232CZER330M11 is a surface mount fixed inductor that is designed for use in electronic circuits.

Shielded: Yes
Inductance: 33 μH
Current Rating: 3.1 A
Tolerance: ±20%
Molded: Yes
DC Resistance: 177 mOhm
Packaging: Reel with 1,000 pieces
Height: 0.118 inches
Operating Temperature: -55°C to 125°C
Frequency Self-Resonant: 5.6 MHz
Dimensions: 0.340 inches long and 0.322 inches wide
Package: Nonstandard
RoHS3 Compliant: Yes
