Same model may have multiple batches, images only for reference.

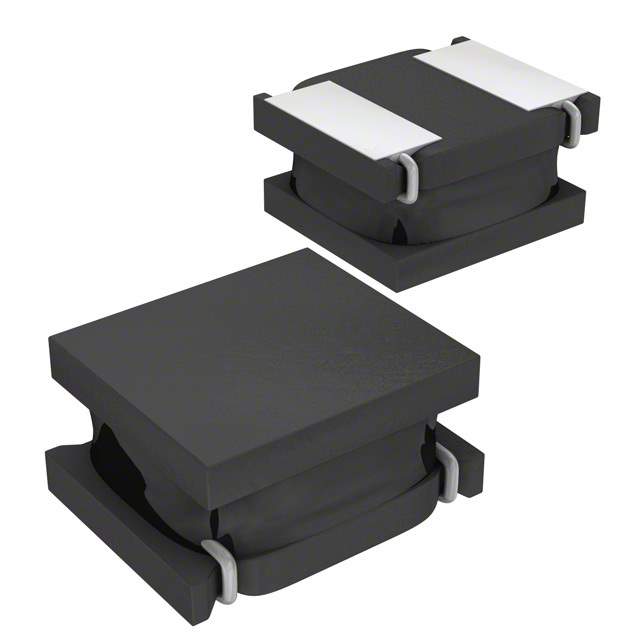

IFSC1008ABER220M01 Real Image
Same model may have multiple batches, images only for reference.

IFSC1008ABER220M01

Part No IFSC1008ABER220M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 22UH 500MA 1.05OHM SMD / 22 µH Shielded Inductor 500 mA 1.05Ohm Max Nonstandard
Datasheet
IFSC1008ABER220M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Vishay Dale
Packaging Reel - TR
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 560mA
Shielding Shielded
DC Resistance (DCR) 1.05Ohm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 541-1392-2,541-1392-1,541-1392-6
Standard Package 2,000
Win Source Part Number 1327631-IFSC1008ABER220M01
Ultra Librarian 3D Model Ultra Librarian IFSC1008ABER220M01 CAD Model

Description

The Vishay Dale IFSC1008ABER220M01 is a surface mount inductor with a shielded design.

  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.047" (1.20mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.05Ohm Max
  • Current Rating: 500 mA
  • Temperature Range: -55°C to 125°C
  • Inductor Type: Nonstandard
