H11A5 Vishay
Same model may have multiple batches, images only for reference.

H11A5

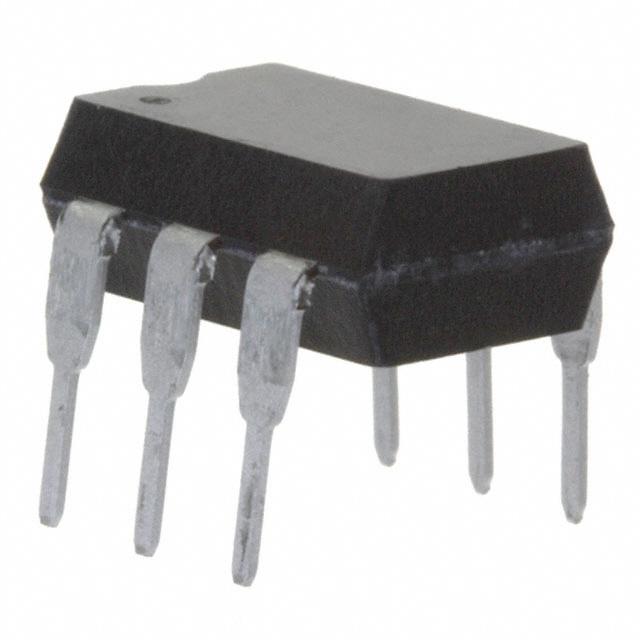

Part No H11A5
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Datasheet
H11A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Manufacturer Vishay
Packaging Tube
Part Status Active
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 30% @ 10mA
Turn On / Turn Off Time (Typ) 3μs, 3μs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 400mV
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Device Package 6-DIP
Win Source Part Number 001435-H11A5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H11A5 CAD Model

Description

The Vishay H11A5 is an optoisolator that belongs to the Transistor, Photovoltaic Output category. It is a 6-DIP (0.300", 7.62mm) package that is mounted through-hole. The H11A5 has a voltage isolation of 5300Vrms and a current transfer ratio of 30% @ 10mA. It has a forward voltage of 1.1V (typ) and a maximum output voltage of 70V. The optoisolator has a current output/channel of 50mA and a Vce saturation of 400mV. The H11A5 is widely used in industrial and consumer applications.
